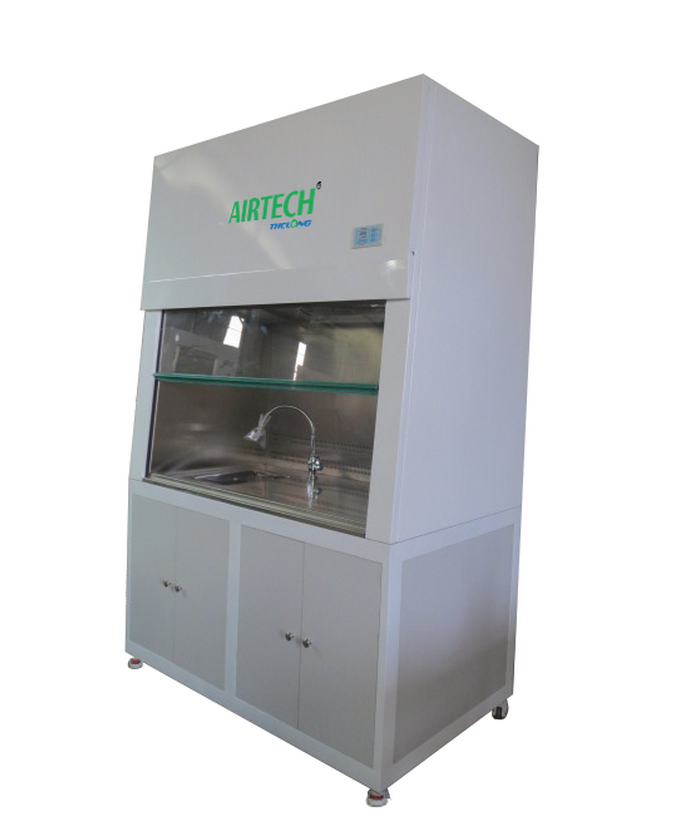

Airtech Thelong ATV-FH1000-ST Fume Hood

External dimensions (W x D x H): 1000 x 800 x 1900 mm

Internal dimensions (W x D x H): 800 x 620 x 720 mm

Structure

Shell frame: Powder coated steel

Base: Powder coated steel

Working side: Stainless steel 304/ As required

Door

Structure: Tempered glass

Up and down: By hand

Electricity supply: 220VAC/50HZ/1Phase/200W

Blowing fan: 200W (SL01)

Air flow velocity: 0.5M/S (100fpm)

Noise level 1m away from the device: 62 – 65 dBA

Lights

LED 600mm: 18W (SL01)

UV light 600mm: As required

Carbon filter eliminates odors: 400 x 400 x 50mm (SL01)

Other requirements: Depends on the customer
