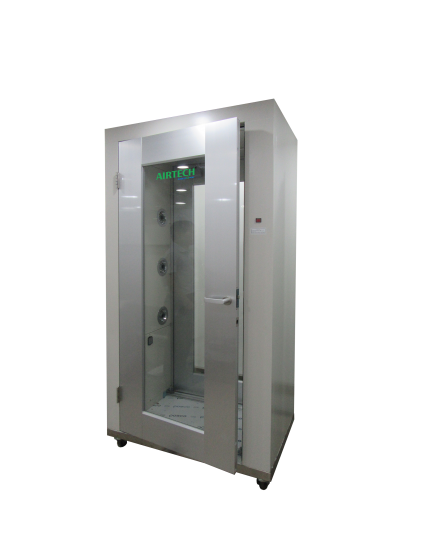

Airtech Thelong ATV-FAS0101AMR1 Single-Sided Air Shower Chamber

External dimensions (WxDxH) (mm): 1300 x 1000 x 2150

Internal dimensions (WxDxH) (mm): 800 x 930 x 1950

Construction

Outer frame: Powder-coated steel, Stainless steel 304

Working area: Powder-coated steel, Stainless steel 304

Floor and base: Stainless steel 304

Door: Aluminum/Stainless steel 304 and tempered glass

Interlock system: Electric interlock

Fan

Power supply: 380VAC / 50Hz / 400W - 1500W

Quantity: 01 unit

Light

Type: 9W x 01 unit

Cleanliness level

ISO 6 (Class 1000)

HEPA Filter

Dimensions: 915 x 610 x 70 (mm)

Quantity: 01 unit

Efficiency: 99.99% / 0.3μm

Pre-filter

Dimensions: 500 x 345 x 10 (mm)

Quantity: 01 unit

Air nozzles (Stainless steel 304)

Position: Left + right

Quantity: 06 + 06 units

Air velocity at nozzle: 20-22 m/s ± 10%

Noise level

Measured at 1 meter from the device: 65 - 70 dBA
