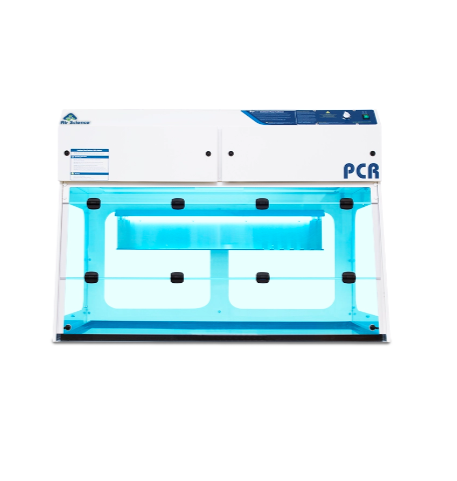

Air Science PCR-48-G Purair PCR Laminar Flow Cabinet (48")

DIMENSIONS & WEIGHT

Nominal Width: 48" / 1219 mm

Internal Height: 23.29" / 591.5 mm

Internal Depth: 26.75" / 679 mm

External (W x D x H): 48" × 27" × 35" / 1219 × 686 × 889 mm

Net Weight ( lbs/kg): 138 / 63

PRODUCT SPECIFICATIONS:

Filtration:

Airflow: Vertical downflow; 0.30 m/s (60 fpm).

Pre-Filter: Disposable polyester fibers with 85% arrestance.

Main Filter: HEPA efficiency, 99.97% at 0.3 μm.

Clamping: Screw compression clamp.

Construction

Finish (exterior): White epoxy-coated steel frame with white legs on cabinet sides.

Windows: Polycarbonate, transparent, UV absorbing.

Blower: EC blower.

Controls: Main On/Off switch for fan and lighting. Solid-state fan speed control with RFI filter maintains blower uniformity. UV timer, safety interlock shut-off.

Work Surface: Standard, black polypropylene. Optional, white polypropylene or stainless steel. Specify when ordering.

Pass Through Ports: Two standard, knockout.

Shelving: Decontamination shelf on rear wall.

Front Sash: Standard, hinged double with safety interlock.

Voltage: 230V; 50Hz

Efficiency

Power Consumption1: 115 watt

Lighting: LED lighting

UV Lamp: 1 × 253.7 nanometer 15 watt.

STANDARDS & COMPLIANCE:

Quality Management Systems: ISO 9001:2015;

Electrical Safety: UL-C-61010-1; CAN/CSA C22.2 61010-1-12; EN 61010-1:2010; CE Mark

Environment: ISO 14001:2015; ENERGY STAR® Partner
