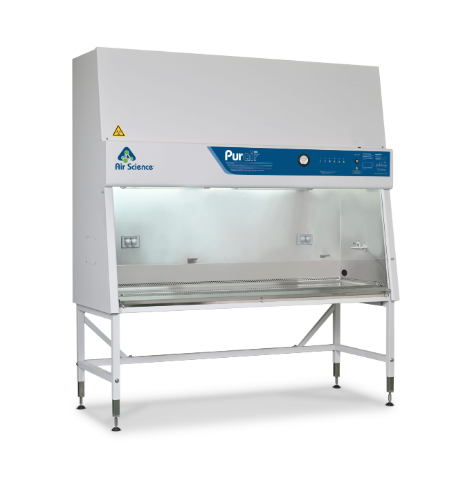

Air Science AS-AHA-193-CB-A Biological Safety Cabinet (6ft)

VOLTAGE: 230V, AC, 50Hz

CERTIFICATIONS:

+ NSF 49: Yes

+ EN12469: Yes

+ IEC61010-1: Yes

PROTECTION:

+ Particulates (Personnel, Work Surface, Environment): Yes

+ Vapors (Personnel, Work Surface): When ducted to outside

DIMENSIONS:

+ Internal (W × D × H): 71.6" × 24.6" × 28" (1820 × 626 × 709 mm)

+ External (W × D × H): 76.1" × 31.1" × 60.5" (1934 × 789 × 1537 mm)

NET WEIGHT (LBS/KG): 705 / 320

PRODUCT SPECIFICATIONS:

Filtration:

Airflow: 70% recirculated / 30% exhausted

Average Inflow Velocity: 100 fpm (0.51 m/s)

Average Downflow Velocity: 60 fpm (0.30 m/s)

Exhaust Air Volume with Exhaust Canopy: 671 cfm (19 m3)

Supply HEPA Filter: (1) 99.99% @0.3 microns (Class H14)

Exhaust HEPA Filter: (1) 99.99% @0.3 microns (Class H14)

Construction:

Room Height: 89.4" / 227 cm

Construction: SUS#304; 6 mm tempered window glass

Window Operation: 8" / 20 cm

Blower: EC brushless DC Motor

Electrical Switches: Membrane push switches; On/Off

Electrical Outlets: (2) Electrical outlets (CE certified)

Electrical: 115V, 60Hz, 15A or 230V, 50Hz, 10A

Efficiency:

Power Consumption: 490 watt

Fluorescent Intensity lux: > 1.000

Fluorescent Lamp: (2) T5, 21 watt

UV Lamp: (1) FL 20 watt, 254 nm

Noise, dBA: < 62

STANDARDS AND COMPLIANCE

Quality Management Systems: ISO 9001:2015

Cabinet Performance: EN12469; NSF 49 [NSF Certification applies to the biological safety cabinet models AHA-133-AA-B (Air Science Model AS-AHA-133-AA-B), AHA-133-AB-B (Air Science Model AS-AHA-133-AB-B), AHA-133-CA-B (Air Science Model AS-AHA-133-CA-B), AHA-133-CB-B (Air Science Model AS-AHA-133-CB-B), AHA-193-AA-A (Air Science Model AS-AHA-193-AA-A), AHA-193-AB-A (Air Science Model AS-AHA-193-AB-A), AHA-193-CA-A (Air Science Model AS-AHA-193-CA-A), AHA-193-CB-A (Air Science Model AS-AHA-193-CB-A) manufactured by Chung Fu Technical Development Co. Ltd., Taipei, Taiwan and marketed by Air Science, LLC, USA.]

Electrical Safety: UL-C-61010-1; CAN/CSA C22.2 61010-1-12; EN 61010-1:2010; CE Mark
