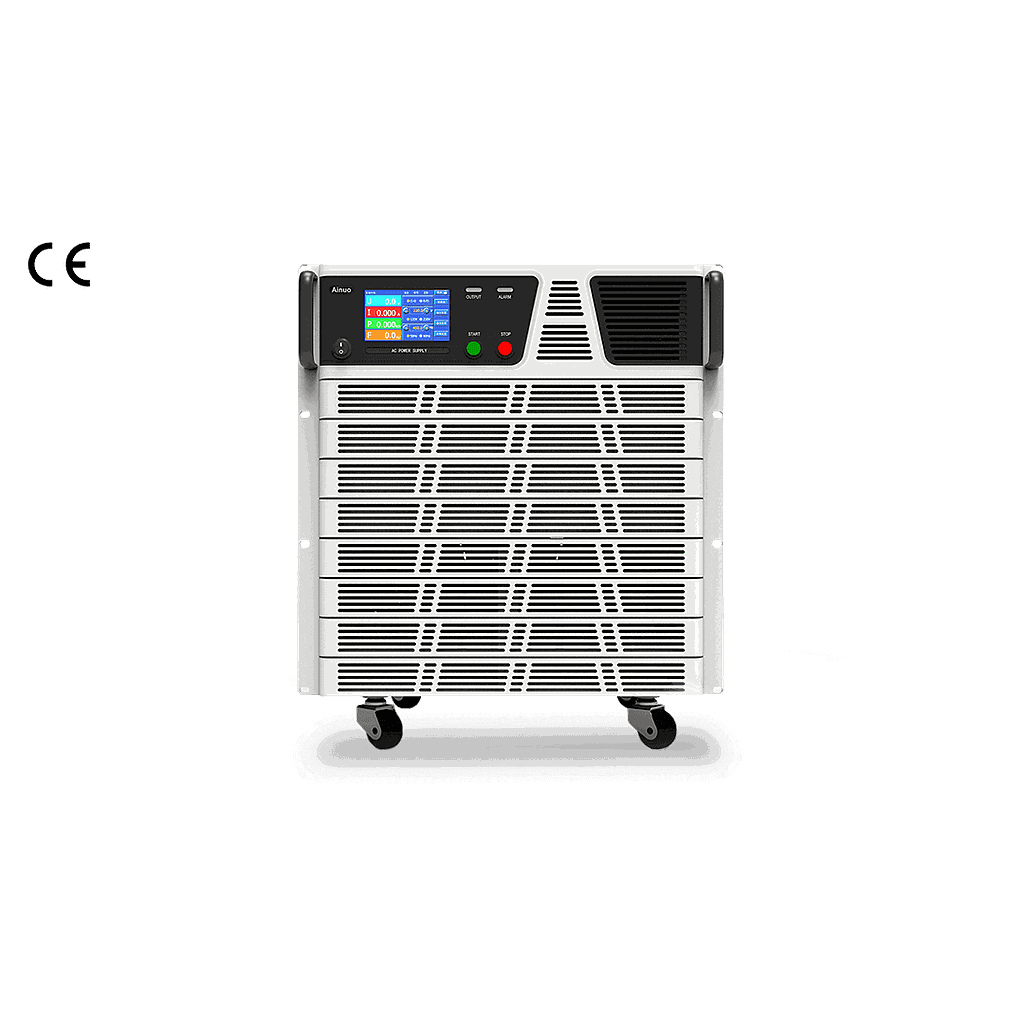

Ainuo ANFH005S(F) AC Power Supply

Input

Capacity: 5kVA

Number of phases: Single phase two wire + PE

Voltage: Phase voltage 220V ±10%

Frequency: 50/60Hz ±3Hz

Output

Rated current:

110V: 45.6A

220V: 22.8A

Setting accuracy:

Voltage: Resolution: 0.1V Precision: 0.2% x reading value + 0.1% x full scale value

Frequency: Resolution: 0.1Hz Precision: 0.05%

Testing accuracy:

Voltage: Resolution: 0.1V Precision: 0.2% x reading value + 0.1% x full scale value

Frequency: Resolution: 0.1Hz Precision: 0.05%

Current: Resolution: 0.001A/0.01A/0.1A Precision: 0.3% x reading value + 0.3% x full scale value

Power: Resolution: 0.001kW/0.01kW Precision: 0.45% x reading value + 0.45% x full scale value

Efficiency: >80%

Function

Display mode: 4.3" color LCD touchscreen

Communication: Standard RS232, opt. RS485/GPIB/Ethernet

Working environment

Temperature: 0 - 40°C

Humidity: 20 - 90%RH

Dimensions W x H x D (mm): 11U, 432 x 488 (563) x 400

Weight (kg): 59
