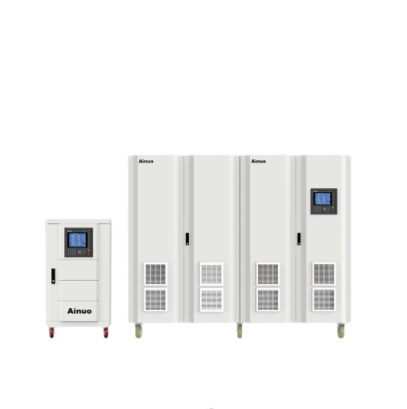

Ainuo ANFC2000T(F) AC Power Supply (2000kVA, 3030A)

Capacity: 2000kVA

Input

Voltage:

Phase: 3-phawe 4-wires + PE

Phase voltage: 220V±33V, line voltage: 380V±57V

Frequency: 50/60Hz±3Hz

Output

Voltage: 3-phase 4-wires; Automatic state: (low-grade) 1.0~150.0V, (high-grade) 150.1-300V; high-grade lock:1.0~ 300.0V

Frequency: 40.0~70.0Hz

Rated current: 220V: 3030A

Setting accuracy

Voltage : Resolution: 0.1V, accuracy: 0.2%xreading value +0.2%xfull scale value

Frequency : Resolution: 0.01Hz, accuracy: 0.05%

Testing accuracy :

Voltage: Resolution: 0.1V, accuracy: 0.2%x reading value +0.2%xfull scale value

Frequency: Resolution: 0.1Hz, accuracy: 0.05%

Current: Resolution: 0.1A/1A, accuracy: 0.3%xreading value +0.3%xfull scale value

Power: Resolution: 0.1 kW/0.01 kW/0.001 kW, accuracy: 0.45%xreading value +0.45%xfull scale value

Frequency stability: ≤0.02%

Voltage distortion: Linear load: THD < 1%

Transient recovery time: 20ms

3 phase phase difference: 3 phase standard mode: 120°±2°

Crest factor : 1.41±0.1

Power effect: ≤1%

Load effect: ≤1%

Overload capacity:

105%<Output≤110% the output will be stopped within 15 Sec

110%<Output≤150% the output will be stopped within 5 Sec

150%<Output≤200% the output will be stopped within 2 Sec

200%<Output the output will be stopped immediately

Protection mode: IGBT overheat、lGBT over current、Transformer overheat、Input under voltage、Input over voltage.Output under voltage, Output over voltage、 Output over load、 Output short cirluit、 output over curent

Function:

Online adjustment function: The output voltage and frequency (45-65Hz) can be adjusted online under status.

Memory function: Power down memory function, memory last output mode and parameters: Shortcut group 7 groups

Line voltage crop compensation: 0.000~0.500 Ω

Communication control interface: RS232(standard); RS485 (optional)、GPIB (optional)、Ethemet(optional)

Remote control: Analog Control port (Options)

Temperature and Humidity: 0 ~ 40 °C; 20 ~ 90%RH

*Images for illustration purposes only
