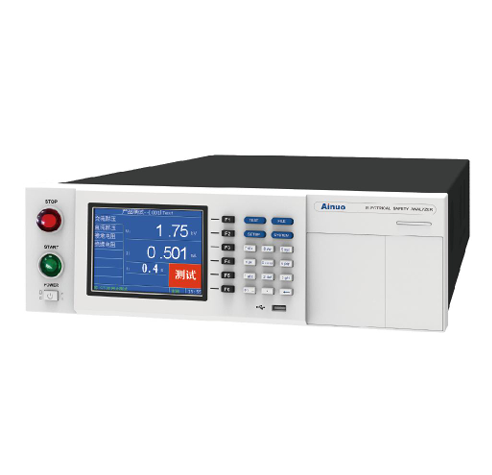

Ainuo AN9637HC8(F) Comprehensive Electrical Safety Analyzer (ACW / DCW / IR / GB)
AC withstand Voltage (ACW): 5kVac/100mA (optional 200mA)
DC withstand Voltage (DCW): 6kVdc/20mA
Insulation Resistance (IR): 6kVdc/50GΩ
AC Ground Bond Resistance (GB): 40Aac/600mΩ
DC Ground Bond Resistance (DCGB): (Optional 40A/60A/100A card)
Multiple Cards: Standard 5W3G card
Operation Interface: Color LCD, numeric keypad, RS232PLCUSBLAN (optional) interface
Informatization: USB storage, barcode recognition and automatic program matching,optional ESRS measurement and control software which can be integrated with MES system
Dimensions (W*H*D mm): 426*132*520
