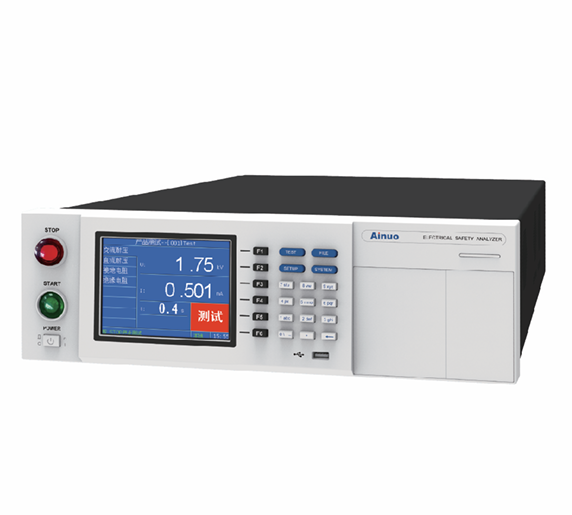

Ainuo AN9637HC(F) Electrical Safety Tester (5kVac/100mA, 6kVdc/20mA, 6kVdc/50GΩ, ACW / DCW / IR / GB)

AC withstand Voltage (ACW): 5kVac/100mA (optional 200mA)

DC withstand Voltage (DCW): 6kVdc/20mA

Insulation Resistance (IR): 6kVdc/50GΩ

AC Ground Bond Resistance (GB): 40Aac/600mΩ

DC Ground Bond Resistance (DCGB): (Optional 40A/60A/100A card)

Multiple Cards: Optional multi-channel ACW/DCW scanning card, multi-channel GB scanning card.and DC low resistance card:(When more than one card is inserted, additional 1U chassis height shall be added for each additional card, and 2U height for 100A DCGB card)

Operation Interface: Color LCD, numeric keypad, RS232PLCUSBLAN (optional) interface

Informatization: USB storage, barcode recognition and automatic program matching,optional ESRS measurement and control software which can be integrated with MES system

Dimensions (W*H*D mm): 426*132*520
