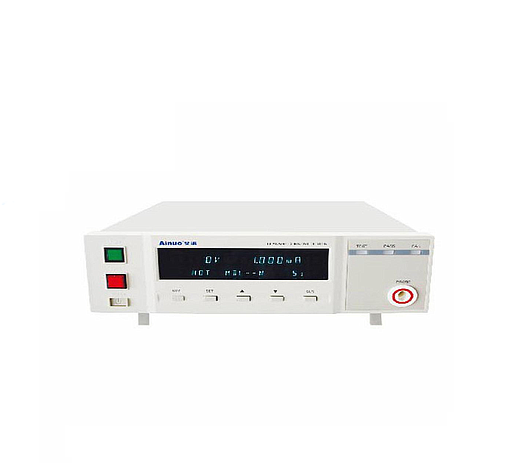

Ainuo AN9620TX(F) Leakage Current tester (Three phase)
Input power supply: 220V AC±10%,50Hz
Test input current: 12A AC MAX
Leakage current measurement range and resolution: 0.010～0.999mA～10.00Ma
Leakage current accuracy: DC～1MHz: ±5%; DC～10KHz: ±3%; 10KHz～1MHz: ±5%
Leakage current alarm preset: 0.050～10.00mA
Measurement time setting range: 1～999s; ±1%
Interface function: RS232(RS485 optional),Remote control
Dimension(W×H×D): 320×110×400mm
Product Detail
Main features
* Latest international standard:Comply with CCC,IEC,EN,VED,BS,UL,JIS standard requirements.
* Standard A MD card
* Measurement bandwidth DC-1MHZ
* Leakage current upper/lower limit setting,intelligent judgment,sound and light alarm
* VFD display,simple operation
* Remote, RS232/485 interface
Spec.
|
Model |
AN9620X(F) single phase |
AN9620TX(F) three phase |
|
Input power supply |
220V AC±10%,50Hz |
|
|
Test input current |
12A AC MAX |
|
|
Built in MD range/Accuracy |
Standard A MD card |
|
|
Inner MD |
Standard configuration figure 4 in GB12113,compliant with MD demand in new standard GB4706.1-2005 Other type MD can be ordered. |
|
|
Leakage current measurement range and resolution |
0.010～0.999mA～10.00Ma |
|
|
Leakage current accuracy |
10μA～50μA |
DC～1MHz: ±(5% of reading+5μA ) |
|
50μA～10.00mA |
DC～10KHz: ±(3% of reading+2μA ) 10KHz～1MHz: ±(5% of reading+5μA ) |
|
|
Leakage current alarm preset |
0.050～10.00mA |
|
|
Measurement time setting range |
1～999s(LLL=continues output|); Accuracy: ±1% |
|
|
Interface function |
RS232(RS485 optional),Remote control |
|
|
Dimension(W×H×D) |
320×110×400mm |
|
