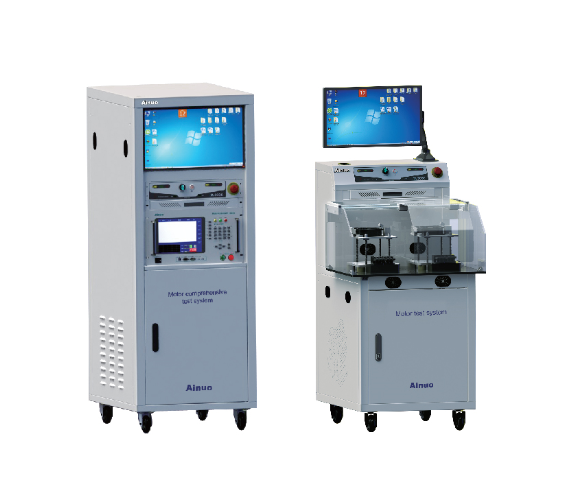

Ainuo AN8353S(F) Stepping Motor Comprehensive Test System (MT3000 series)

Withstanding voltage

• Output voltage:

Range: (300 ~ 3000) VAC; Step: 10V

Accuracy: ± (2.5%x setting +10V); Distortion: <3%

• Output frequency:50Hz/60Hz; Accuracy: ±0.1Hz

• Actual capacity: ≥ 90%

• Breakdown current:

Range: (0.10~20.00) mA

Accuracy: ± (2.5%x reading +5 counts)

• Duration: Range: (1~99) s; Accuracy: ± (1 %x setting +0.1s)

• Arc: Set to 0, (1.00~10.00) mA, 0: Arc Off

Insulation Resistance

• Output voltage:

Range: (200 ~ 1000) V DC; Step: 5V

Accuracy: ± (3%x setting +5V)

• Ripple coefficient: <5%

• Resistance measurement:

Range: (1.0 ~ 99.9) M Ω, (100 ~500) M Ω

Accuracy: ± (3%x reading +5 counts), ≤200M Ω; ± (5%x reading +8 counts), >200M Ω

• Duration: Range: (1~99) s; Accuracy: ± (1 %x setting +0.1s)

Impulse

• Pulse voltage: Range: (200~3000) V; Step: 10V; Accuracy: ± (3%x setting +10V)

• Storage capacitance: Standard capacitance: 0.022 μF

• Wavefront time: ≤0.5 μs

• Waveform acquisition:

Frequency: 5kHz~40MHz, 13-level adjustable.

Resolution: 8-bit AD

Storage: 1k bytes.

Multiple tests: (1 ~ 10) times continuous

• Waveform parameter:

Area, difference area, range: (0 ~ 99)%

Resolution: 0.1%; Accuracy: ±3.0%

Resistance

• Resistance measurement:

Range: 0.1/ 2/20/200/2k/20k, unit: Ω

Accuracy: ±(0.3%x reading +3 counts) (temperature compensation off)

• Temperature measurement: Range: (0.0~60.0)°C; Accuracy: ±0.5°C

Field Direction

Magnetic field direction: Forward/Reverse/Stop

Anti-embedded

Anti-embedded test: Normal/Anti-embedded

Weight: 35 kg (single machine)

Dimension: 440(W)x265(H)x550(D)
