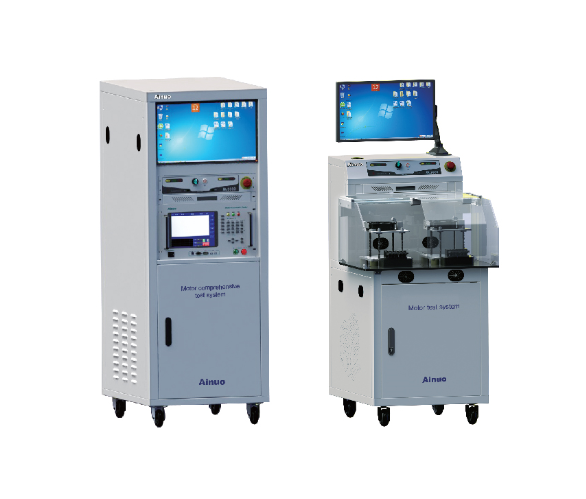

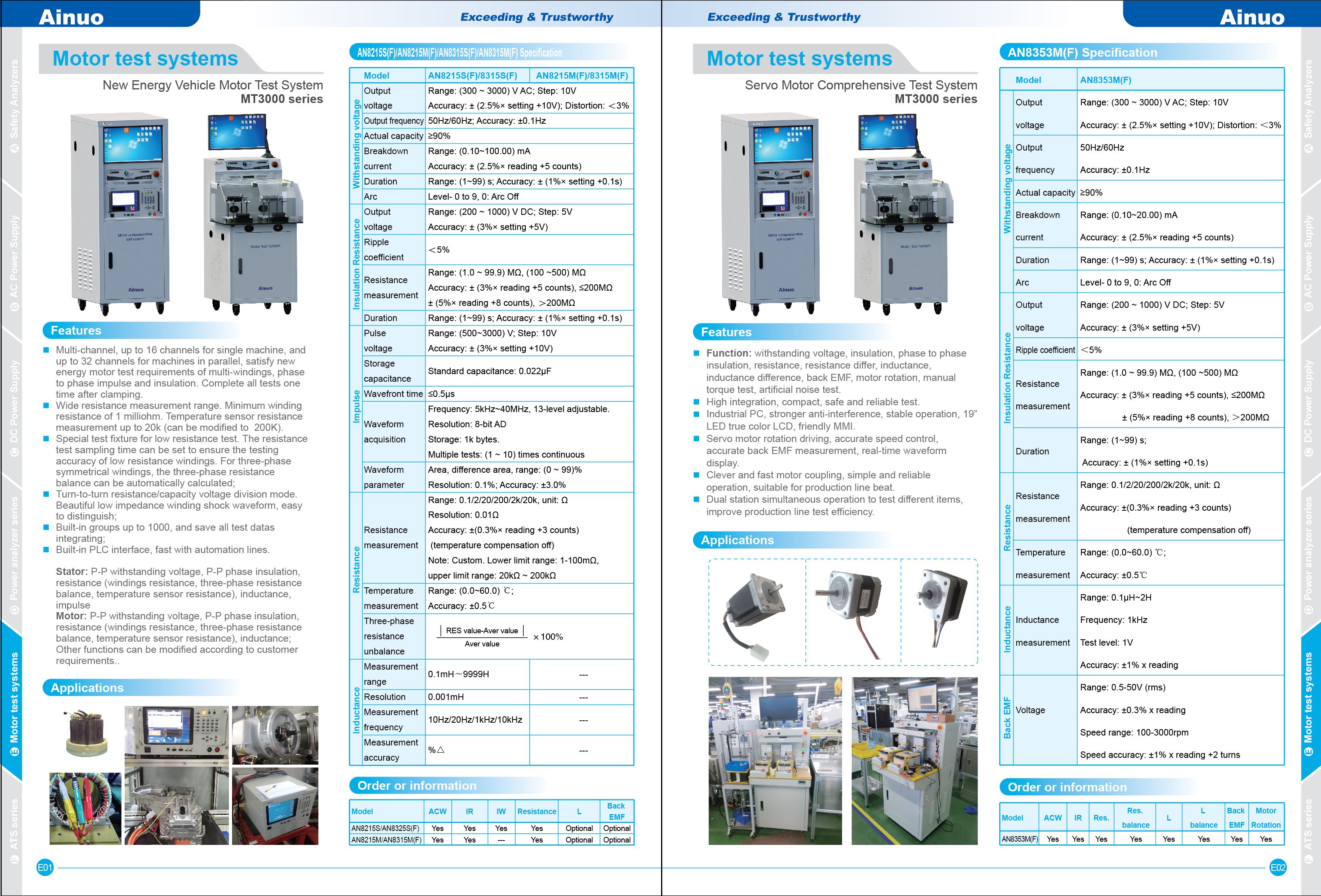

Ainuo AN8353M(F) Servo Motor Comprehensive Test System (MT3000 series)

Withstanding voltage

• Output voltage:

Range: (300 ~ 3000) VAC; Step: 10V

Accuracy: ± (2.5%x setting +10V); Distortion: <3%

• Output frequency:50Hz/60Hz; Accuracy: ±0.1Hz

• Actual capacity: ≥ 90%

• Breakdown current:

Range: (0.10~20.00) mA

Accuracy: ± (2.5%x reading +5 counts)

• Duration: Range: (1~99) s; Accuracy: ± (1 %x setting +0.1s)

• Arc: Level-0 to 9, 0: Arc Off

Insulation Resistance

• Output voltage:

Range: (200 ~ 1000) V DC; Step: 5V

Accuracy: ± (3%x setting +5V)

• Ripple coefficient: <5%

• Resistance measurement:

Range: (1.0 ~ 99.9) M Ω, (100 ~500) M Ω

Accuracy: ± (3%x reading +5 counts), ≤200M Ω; ± (5%x reading +8 counts), >200M Ω

• Duration: Range: (1~99) s; Accuracy: ± (1 %x setting +0.1s)

Resistance

• Resistance measurement:

Range: 0.1/ 2/20/200/2k/20k, unit: Ω

Accuracy: ±(0.3%x reading +3 counts) (temperature compensation off)

• Temperature measurement: Range: (0.0~60.0)°C; Accuracy: ±0.5°C

Inductance

• Inductance measurement:

Range: 0.1μH~2H

Frequency: 1kHz

Test level: 1V

Accuracy: ± 1% x reading

Back EMF

• Voltage

Range: 0.5-50V (rms)

Accuracy: ± 0.3% x reading

Speed range: 100-3000 rpm

Speed accuracy: ± 1% x reading + 2 turns
