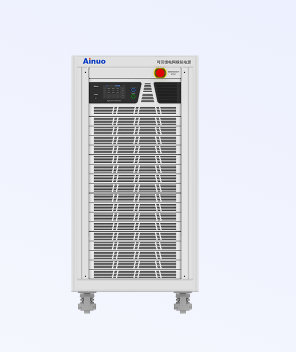

Ainuo AN61950B-350(F) Programmable AC Power Source (50kVA)

Power supply capacity: 50kVA

AC Input:

Voltage: Line voltage: 342V-480V; 3-phase 3-wire + PE

Current@342V: 110A Max

Frequency: 47~63Hz.

Power factor: ≥0.98.

AC Output

Phase number: Three-phase & Single-phase

Total power: 50kVA; Per phase power: 16.66kVA

Voltage

Range: 0.00-350.00V

Resolution: 0.01V; Accuracy: 0.1%F.S.

Distortion: 0.3%@50/60Hz;1%@30-100HZ

Source voltage effect: ≤0.02%.

Load effect: ≤0.02%.

Curent

Effective current range: Three-phase mode 120A; Single-phase mode 360A

Peak current range: Three-phase mode 360A; Single-phase mode 1080A

Frequency range/resolution/accuracy: 30.000~100.000HZ, 0.001Hz, 0.01%.

DC Output

Total power: 50kW; Power per channel: 16.66kW

Voltage range: -495.00~495.00V

Current range: Single channel 120A; Parallel connection 360A

Function:

Display: 5-inch color touch screen LCD

Waveform selection: Sine wave, triangle wave, square wave, clipped sine wave, 30 sets of built-in waveforms and 6 sets of custom waveforms.

Harmonics: 2-50 th

Harmonic and interharmonic simulation bandwidth: 3000Hz.

Sequence mode: 200 steps with 9,999 loops. Voltage, frequency, and phase angle can be programmatically outputted

Pulse mode: 9,999 loops. Cyclic changes in voltage amplitude, frequency, and angle

Step mode: 9,999 loops. Change the voltage frequency according to the set voltage and frequency step values

Communication interface: RS485 (standard), Ethernet (standard), synchronization signal (standard), RS232 (optional), GPlB (optional)

Remote control: None

Temperature/Humidity: 0~40°C / 30~90%RH.

Efficiency: ≥92%

Protection: Input abnormalty, bus overvoltage, output overvoltage and undervollage, output overcurent, output overoad, and module overheating

Dimensions (W×H×D): 600x1230x1000 mm.

Weight: ≤330kg.
