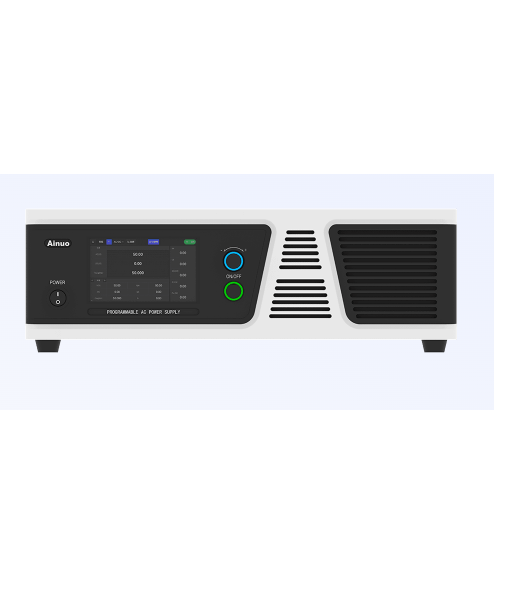

Ainuo AN61506S-350(F) Programmable AC Power Source (6000VA)

AC Input:

Power supply capacity: 6000VA.

Voltage: 198~250V, three-phase four-wire + PE.

Current: 25A Max @198V.

Frequency: 47~63Hz.

Power factor: ≥0.98.

AC Output

Phase number: Single-phase.

Total Power: 6000VA.

Voltage

Gear range: Low grade: 0~175.0V, High grade: 0~350.0V; Low gear/high gear/automatic gear

Resolution: 0.01V; Accuracy: 0.2%+0.2%F.S.

Distortion: 0.3%@50/60Hz; 1%@15~1000Hz.

Source voltage effect: ≤0.1%.

Load effect: ≤0.2%.

Curent/phase

Effective current range: 0-175V: 60A; 0-350V: 30A

Peak current range: 0-175V: 240A; 0-350V: 120A

Frequency range/resolution/accuracy: 15~1000Hz, 0.001Hz, ±0.15%.

DC Output

Power: 3000W

Voltage range: -247.5V~247.5V, high gear: -495.00V~495.00V

Current: -247.5V~247.5V: 30A; -495.00V~495.00V: 15A

Function:

Display/Waveform selection: 5-inch color touch screen LCD/Sine wave, square wave, 30 sets of built-in waveforms.

Harmonics: 2~40 times

Harmonic simulation bandwidth: 2400Hz

Sequence mode: 100 steps with 9,999 loops. Voltage, frequency, and phase angle can be programmatically outputted

Pulse mode: 9,999 loops. Cyclic changes in voltage amplitude, frequency, and angle/

Step mode: 9,999 loops. Change the voltage frequency according to the set voltage and frequency step values

Line drop compensation/Communication interface: The device has Sense teminals that alow remote sampling compensation/RS232 (standard), RS485 (optional), GPIB (optional), and Ethernet (optional))

Remote control: Analog control port (standard).

Temperature/Humidity: 0~40°C / 30~90%RH.

Efficiency/Protection: ≥92%, Input abnormality, bus overvoltage, output overvoltage, undervoltage, output overcurrent, output overload, module overheating.

Dimensions (W×H×D): 432×222×640 mm.

Weight: ≤40kg.
