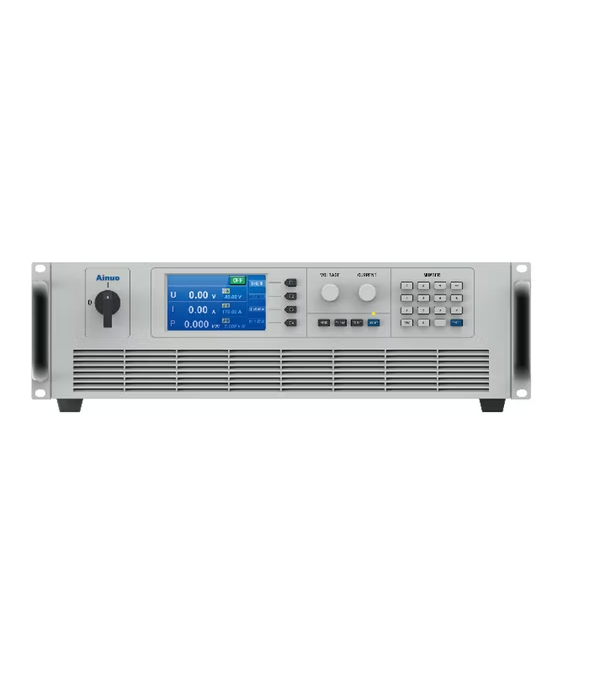

Ainuo AN5380-170(F) Wide-range DC Programmable Power Supply (80V, 170A, 5kW)

Input:

Voltage: 3-phase + PE, 340V ~ 420VAC

Frequency: 47 ~ 63 Hz

Output:

Voltage: 0～80V

Current: 0～170A

Power: 5kW

Display Mode: 4.3” Color LCD Screen

Measurement Accuracy:

Voltage: ≤0.1% Umax, Resolution: 0.01V

Current: ≤0.2% Imax, Resolution: 0.01A (>1000A, 0.1A)

Power: ≤1% Pmax, Resolution: 0.001kW (>100kW, 0.01kW)

Ripple & Noise (20Hz ~ 20MHz):

Vrms: 30mV

Vpp: 200mV

Load Effect:

Voltage: ≤0.05% Umax

Current: ≤0.15% Imax

Power Effect:

Voltage: ≤0.02% Umax

Current: ≤0.05% Imax

Response Time:

Transient Response Time: ≤2ms

Rise Time to 100%: 50ms (10% - 90%)

Maximum Output Voltage Compensation: 6.5V

Communication Interface: RS232

Environmental Conditions:

Operating Temperature: 0 ～ 40℃

Humidity: 20 ～ 90% RH

Physical Specifications:

Dimensions (W × H × D): 440 × 133 × 600 mm

Weight: 17kg
