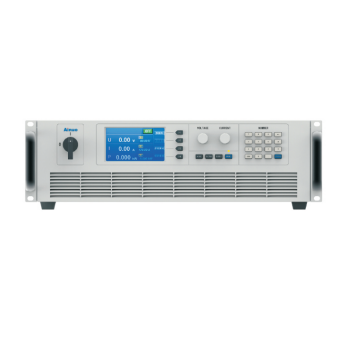

Ainuo AN53750-60(F) Wide Range Programmble DC Power Supply (15kW, 750V, 60A)

Input:

Voltage: 3-phase 3-wire + PE, 340V ~ 420VAC

Frequency: 47 ~ 63 Hz

Output:

Voltage: 0～750V

Current: 0～60A

Power: 15kW

Display Mode: 4.3" Color LCD screen

Testing Accuracy:

Voltage: ≤0.1% of Umax, Resolution: 0.01V

Current: ≤0.2% of Imax, Resolution: 0.01A (for >1000A, 0.1A)

Power: ≤1% of Pmax, Resolution: 0.001kW (for >100kW, 0.01kW)

Ripple and Noise 20Hz ~ 20MHz:

Vrms: 200mV

Vpp: 800mV

Load Effect Voltage: ≤0.05% of Umax, Current: ≤0.15% of Imax

Source Effect Voltage: ≤0.02% of Umax, Current: ≤0.05% of Imax

Transient Response Time: ≤2ms

Rise Time 100%: 50ms (10% - 90%)

Maximum Output Voltage Drop Compensation: 25V

Communication Standard: RS232, Optional: RS485, LAN, GPIB

Environmental Temperature: 0 ~ 40 ℃; Humidity: 20 ~ 90% RH

Dimensions W × H × D (mm): 440 × 133 × 595

Weight: 37kg.
