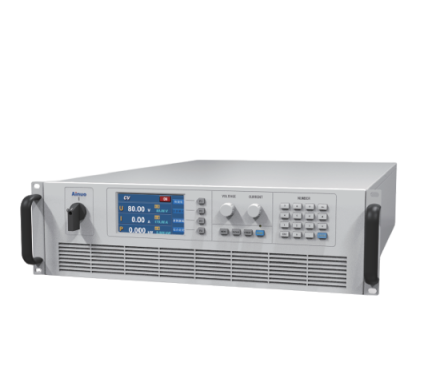

Ainuo AN531000-40(F) Wide Range Programmable DC Testing Power (1000V/40A/10kW)

Input Voltage: Three-phase three-wire+PE, 340V~420VAC

Frequency: 47~63Hz

Output Voltage: 0~1,000V

Output Current: 0~40A

Output Power: 0~10kW

Measurement error (Voltage): ≤0.05%Umax, resolution 0.01V

Measurement error (Current): ≤0.1%Imax, resolution 0.01A (>1000A, 0.1A)

Measurement error (Power): ≤1%Pmax, resolution 0.001kW (>100kW, 0.01kW)

Ripple and Noise Vrms: 350mV

Ripple and Noise Vpp (20Hz~20MHz): 1600mV

Load effect: Voltage ≤0.01%Umax, current ≤0.05%Imax

Power effect: Voltage ≤0.01%Umax, current ≤0.01%Imax

Transient response time: ≤2ms

Maximum lead drop compensation: 25V

Communication control interface: Standard: RS232, RS485, CAN, and LAN; optional: GPIB, analog port, and USB

Protection functions: Input undervoltage protection, short-circuit protection, reverse connection protection, output overvoltage and current-limiting protection, overheating protection, and S-terminal compensation function

Parallel connection function: It supports multiple units for parallel output to expand power/current range

Working environment: Temperature 0~40°C; Humidity 20~90%RH

Dimensions (W×H×D): 440×133×600 mm

Weight: 27kg
