Ainuo AN5080-75(F) Voltage-stabilized DC Power Supply (80V/75A/6KW)

Input:

Phase number: three-phase

Voltage: 380V±38V

Frequency: 47-63Hz

Output

Voltage: 0~80V

Current: 0~75A

Power: 0~6KW

Display mode: 5-bit Nixie tube display

Voltage resolution: 0.01V (0.1V when ≥ 100V)

Current resolution: 0.01A (0.1A When ≥100A)

Setting error programming accuracy

Voltage: ≤0.2%Umax

Current:  ≤0.2%Imax

Measurement error (readback accuracy)

Voltage: ≤0.2%Umax

Current:  ≤0.2%Imax

Ripple and Noise (20Hz-20MHz):

Vrms: 60mV

Vpp: 500mV

Load effect

Voltage: ≤0.1%Umax

Current: ≤0.2%Imax

Source effect

Voltage: ≤0.05%Umax

Current: ≤0.1%Imax

Transient response time: ≤2ms (50%-100%, or 100%-50%, error returns to 0.75% of stable value)

Temperature drift:

Voltage: 0.05% setting value

Current: 0.05% setting value

Noise: ≤68dB (A)

Scope of OVP: 110%F.S

Maximum lead drop compensation: 2V

Communication function: RS-232 (standard)/485 (standard)/LAN (standard)

Protection function: Short-circuit protection, reverse protection, output overvoltage, current-limiting protection, internal overheating protection, S-terminal over-compensation protection

Analog interface (optional): Start, stop, alarm, 0-5V or 0-10V analog control output

Efficiency: ≥85%

Operating Temperature: 0~40°C

Storage temperature: -20~70°C

Humidity: <80%, without condensation

Volume (W×H×D): 444*132.5*641mm

Weight: 23.5kg

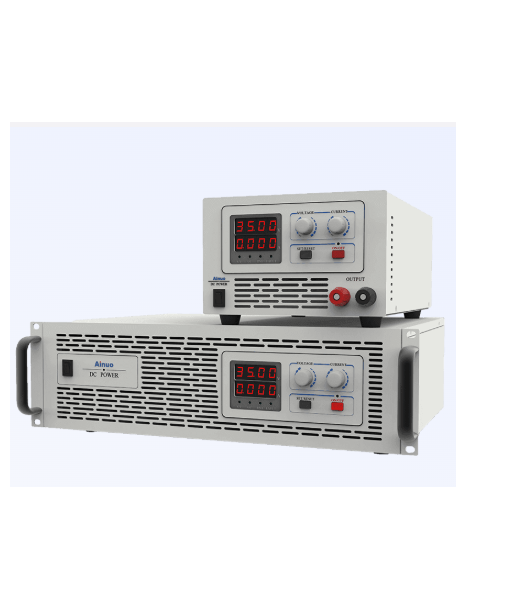

*Images for illustrative purposes only
