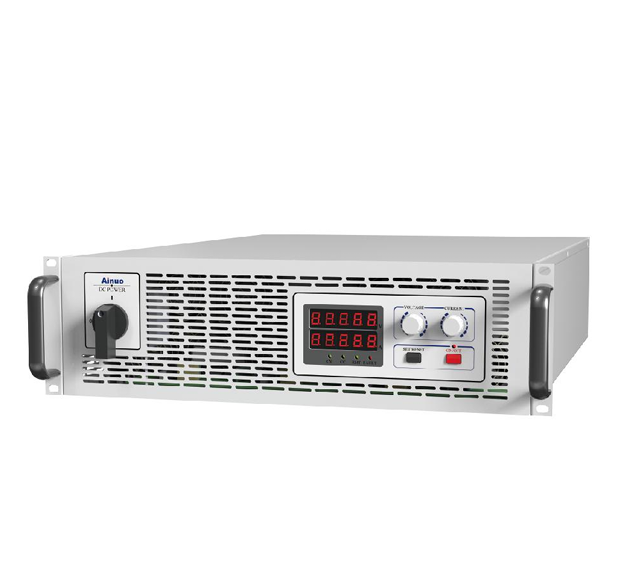

Ainuo AN5010-100(F) DC Regulated Power Supply (0~10V, 0~100A, 0~1000W)

Input Power Supply: Single phase, 220V±22V, 47-63Hz

Output Voltage: 0~10V

Output Current: 0~100A

Output Power: 0~1000W

Resolution and accuracy (Voltage): Resolution 0.001V (0.01V when ≥10V), accuracy ≤0.4%Umax

Resolution and accuracy (Current): Resolution 0.001A (0.01A when ≥10A), accuracy ≤0.5%Imax

Ripple and Noise (Vrms): 30mV

Ripple and Noise (Vpp, 20Hz20MHz): 200mV

Effect (Voltage): Load effect ≤0.1%Umax, source effect ≤0.05%Umax

Effect (Current): Load effect ≤0.2%Imax, source effect ≤0.1%Imax

Transient response time: ≤5ms

Maximum lead voltage drop compensation: 2V

Communication function: RS-232 (standard)/RS485 (optional)

Protection function: Output short-circuit protection, output overvoltage, internal overheating protection, S-terminal over-compensation protection, S-terminal reversal protection

Analog interface (optional): Start, stop, alarm, 0-5V/0-10V or 4-20mA analog control output

Working Environment: Temperature: 0~40°C; Humidity: 20~90%RH

Volume (W×H×D): 210×133×325mm

Weight: 6kg
