Ainuo AN23512(F) DC Electronic Load (150V/60A/300W)

Constant Current(CC):

Range: 0-6A, 0-60A

Resolution of setting: 0.1mA, 1mA

Accuracy: 0.03%+ 0.05% * F .S.

Constant Voltage(CV):

Range: 0.1-20V, 0.1-150V

Resolution of setting: 1mV, 10mV

Accuracy: 0.03%+ 0.02% * F .S.

Constant Resistance (CR) (when input voltage and current≥10% of full range)

Range: 0.03Ω-99.999Ω / 100Ω-999.99Ω / 1000Ω-9999.9Ω

Resolution of setting: 0.001Ω/ 0.01Ω/0.1Ω

Accuracy: Vin/Rset*(0.2%)+0.2%IF.S.

Constant Power(CP) (when input voltage and current≥10% of full range):

Range: 100W/300W

Resolution of setting: 1mW/10mW

Accuracy: 0.1%+0.1%F.S.

Voltage measurement

Range: 0-20V, 0-150V

Resolution of setting: 1mV, 10mV

Accuracy: 0.015%+ 0.05% * F .S.

Current measurement

Range: 0-6A, 0-60A

Resolution of setting: 0.01mA, 0.1mA

Accuracy: 0.03%+0.05%F.S., 0.03%+0.08%F.S.

Power measurement (when input voltageand current≥10% of full range)

Range: 100W/300W

Resolution of setting: 1mW/10mW

Accuracy: 0.1%+0.1%F.S

Battery test: Input voltage: Max. set voltage; current resolution: current resolution of the stage; time: 0-99.999H

Dynamic test: Test frequency: 0-25KHz; current change rate: 2.5A / us,time: 20us-999999ms, resolution: 20µs

Current soft start time: 0-999999ms, accuracy: 20µs

Short circuit function: >= 1.1 times the range of the stage

Dimensions WxHxD (mm): 213 * 88 * 401

Weight: 6.7kg

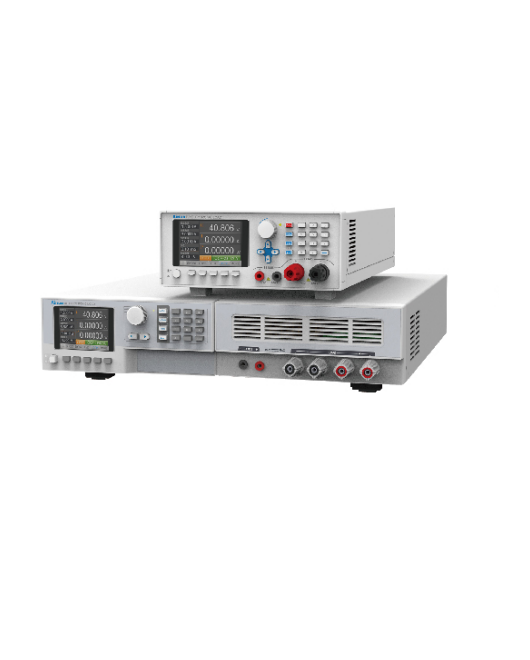

*Images are for illustrative purposes only.
