Ainuo AN23202(F) Module DC Electronic Load (1~80V; 0~20A; 0~100W)

Input range: 1~80V; 0~20A; 0~100W
CC Static: 0~2A 0.5mA/ 300Ω:100ms+0.2%of setting; 0~20A 5mA/ 5kΩ:10ms+0.1%of setting
CR: 0.075Ω~300Ω/ 300Ω:100ms+0.2%of setting; 300Ω:100ms+0.2%of setting/ 5kΩ:10ms+0.1%of setting
CV: 1~80V/±(0.05%of setting+0.1%of measurement)
CP: 1~100W/ ±(0.5%of setting+0.2%of measurement)
CC Dynamic:
+ T1&T2: 0.025ms~10ms/ 1us+100ppm; 1ms~30s/ 1ms+100ppm
+ Slope: 0.32~80mA/us; 3.2~800mA/us
Short Circuit: FET switch 0.075Ω 20A
Dimension W×H×D: 84.5mm×153mm×534mm

Product Detail

AN23X series Module DC Electronic Load of broad-spectrum is widely used in testing power reliability, output voltage regulation and transient performance of the DC Power Supply and parameters test for charging and discharging procedures of capacitor, charger, battery etc. & power components.

★Adopt 16 bits high accuracy ADC (Analog-to-Digital Conversion) circuit and 32 bits high speed DSP(Digital Signal Processor),which improve accuracy and data processing speed
★One Single Case can hold 10 load channel, suitable for testing power supply with multi-channel output
★Each load module has independent LCD display, voltage, current and power which are all 5 digits displayed
★Able to be used as several sets of load in parallel with a module case and to carry out multiple synchronous load on application with paralleled load groups in static and dynamic operation mode
★0.8V voltage of load module can reach the max. rated current
★Short-circuit test, peak-to-peak value, OCP and OPP tests

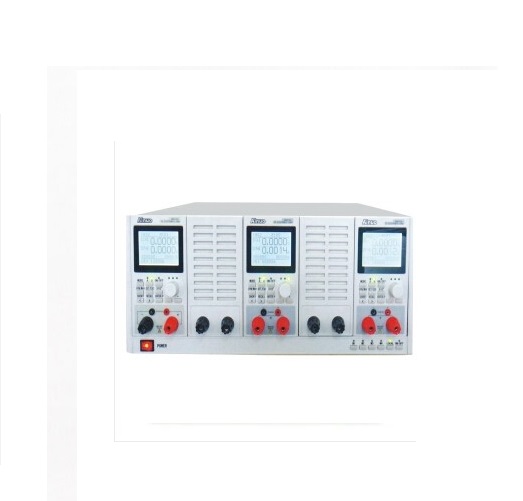

Double Channel DC Electronic Load Module Unit AN23202 (F)
