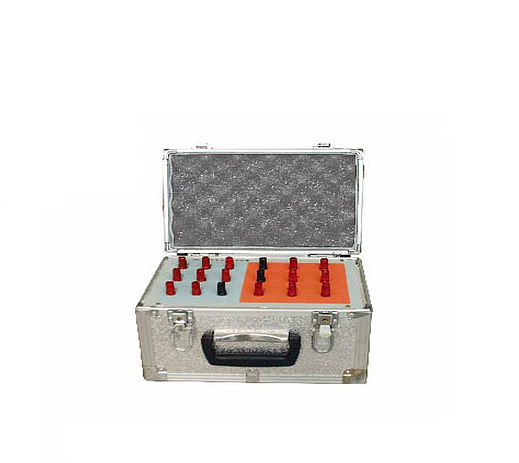

Ainuo AN200-04(F) AC/DC Resistance box
Nominal resistance value/ Max power/ Max current:
+ 0～0.47KΩ/ 40W/ 200mA
+ 0～1KΩ/ 40W/ 100mA
+ 0～10KΩ/ 40W/ 50mA
+ 0～100KΩ/ 2W/ 4mA
Resistance accuracy; ±1%
Loading time: <5 minutes="" br=""> Operating Enviroment: 23ºC±5ºC,，（45～75）%RH
Product Detail
|
Model |
Max voltage |
Nominal resistance value |
Max power |
Max current |
|
|
AN200-02 Rough adjustment |
5000V |
50KΩ |
500W |
100mA |
|
|
100KΩ |
500W |
50mA |
|||
|
250KΩ |
500W |
20mA |
|||
|
500KΩ |
500W |
10mA |
|||
|
1MΩ |
500W |
5mA |
|||
|
AN200-04 |
1000V |
0～0.47KΩ |
40W |
200mA |
|
|
0～1KΩ |
40W |
100mA |
|||
|
0～10KΩ |
40W |
50mA |
|||
|
0～100KΩ |
2W |
4mA |
|||
|
Resistance accuracy |
±1%× nominal resistance |
||||
|
Loading time |
<5 minutes="" span=""> |
||||
|
Operating environment |
23ºC±5ºC,，（45～75）%RH |
||||
|
Storage environment |
0℃～40℃，（5～90）%RH |
||||
