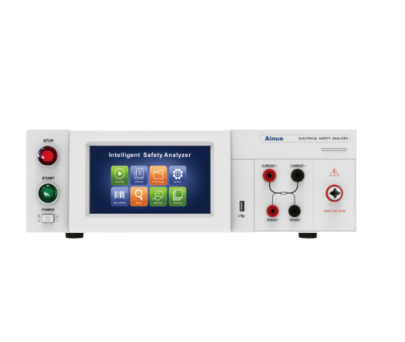

Ainuo AN1636H(F) Intelligent Electrical Safety Analyzer (ACW/DCW/IR)

AC withstand Voltage (ACW): 5kVac/100mA (optional 200mA)

DC withstand Voltage (DCW): 6kVdc/20mA

Insulation Resistance (IR): 6kVdc/100GΩ

AC Ground Bond Resistance (GB): None

DC Ground Bond Resistance (DCGB): (Optional 40A, 60A)

Multiple Cards: Optional multi-channel ACW/DCW scanning card, multi-channel GB scanning card, and DC low resistance card; (When more than one card is inserted, additional 1U chassis height shall be added for each additional card, and 2U height for  100A DCGB card

Parallel: (Optional: Voltage division ratio, parallel ACW/DCW test between input-output-case; parallel GB and ACW/DCW test)

Operation Interface: Android system, 7" touch screen, RS232LANWIFIPLCUSB interface

Informatization: Local store, data filter and export; barcode recognition and automatic program matching, MES system integration; optional: HDMI interface, supporting external LCD display, keyboard/mouse

Dimensions (W*H*D mm): 426*132*520
