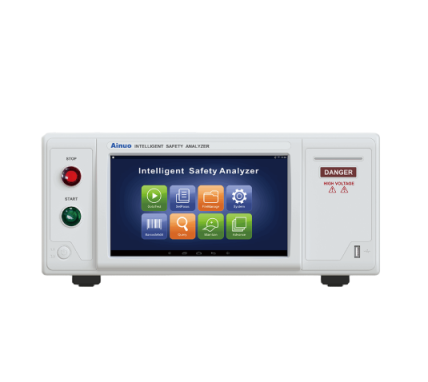

Ainuo AN1620H(F) Leakage Current Analyzer (Single-phase 300V/20A)

DUT Specifications: Single-phase 300V/20A

Test Power Supply: Optional built-in 500W power supply or external power supply

Test Network: Standard three networks: A/F/H, up to 8 optional networks

Current Range: 0-20mArms,0-20mAac/Adc; 30mApeak; Patient, case, ground leakage current; Built-in S switch state setting; One-click automatic settings following GB9706.1/1EC60601-1 standard

Impedance and Frequency Response: DC, 10Hz - 1MHz

Power Measurement: Optional: 300V/20A power measurement per phase, with accuracy of 0.5%

Operation Interface: Android system, 10" touchscreen, RS232LANPLCUSB interface

Dimensions (W*H*D mm): 462*177*550

Datasheet
