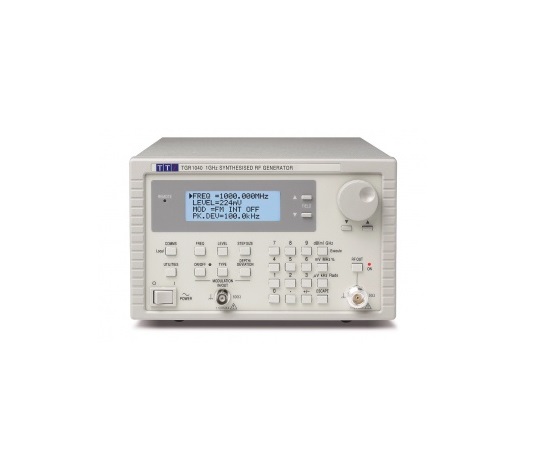

Aim TTI TGR1040GP RF Signal Generator, RS232 with GPIB interface (10MHz ~ 1000MHz; RS232; GPIB)

Frequency Range: 10MHz to 1000MHz

Setting Resolution: 1kHz by direct keyboard entry, or in user-set increments

of 1kHz to 999·999MHz.

Display Resolution: 1kHz

Accuracy: < ± 1 ppm over temperature range 15°C to 30°C

< ± 2 ppm over temperature range 5°C to 40°C.

Stability: < ± 1ppm/year ageing.

Phase Noise: -110dBc/Hz at 25kHz offset, 500MHz carrier.

Residual FM:

(FM Off)

Equivalent peak deviation in a 300Hz to 3·4kHz

bandwidth: 17Hz at 500MHz carrier.

Output Level Range: –127dBm to +7dBm (0·1µV to 500mV into 50).

Setting Resolution: 0·1dB (or 0·01µV to 1mV) by direct keyboard entry,

or in user-set increments of 0·1dB to 100dB (or

0·01µV to 100mV).

Accuracy: Better than ± 2dBm, except for output levels

<-70dbm at="" 500="" -1000="" mhz="" 3dbm="" br=""> Harmonics: Typically <-25dBc, maximum –20dBc, any carrier frequency,

output level <0dBm.

Non-Harmonic Spurii: <–60dBc at >8kHz offset.

Carrier Leakage: <0.5uv generated="" into="" a="" 50="" load="" by="" a="" 2="" turn="" 25mm="" br=""> loop, at a distance of 25mm from the generator with

the output set to <-10dbm into="" a="" 50="" sealed="" load="" br=""> Output Type: Output impedance 50, Type N connector, Reverse

protection 50V DC.

Output Switch: RF OUT on-off switch with LED showing ON status.

TG

General

Display: 20 character x 4 row backlit alphanumeric LCD

Data Entry: Keyboard selection of frequency, amplitude, etc.;

value entry direct by numeric keys or by rotary control.

Stored Settings: Up to 9 complete instrument set-ups may be stored

and recalled from battery-backed memory.

Mechanical

Size: 130mm (3U) H; 212mm (half-rack) W; 330mm D.

Weight: 4·6 kg. (10 lb)

Power Requirements

100V or 110V - 120V or 220V - 240V, all ±10% 50/60Hz,

adjustable internally; 30VA max. Installation Category II.

Temperature & Environmental

Operating Range: +5°C to 40°C, 20-80% RH.

Storage Range: –20°C to + 60°C.

Environmental: Indoor use at altitudes up to 2000m,

Pollution Degree 2.

Safety & EMC

Safety: Complies with EN61010-1.

EMC: Complies with EN61326.

Datasheet
