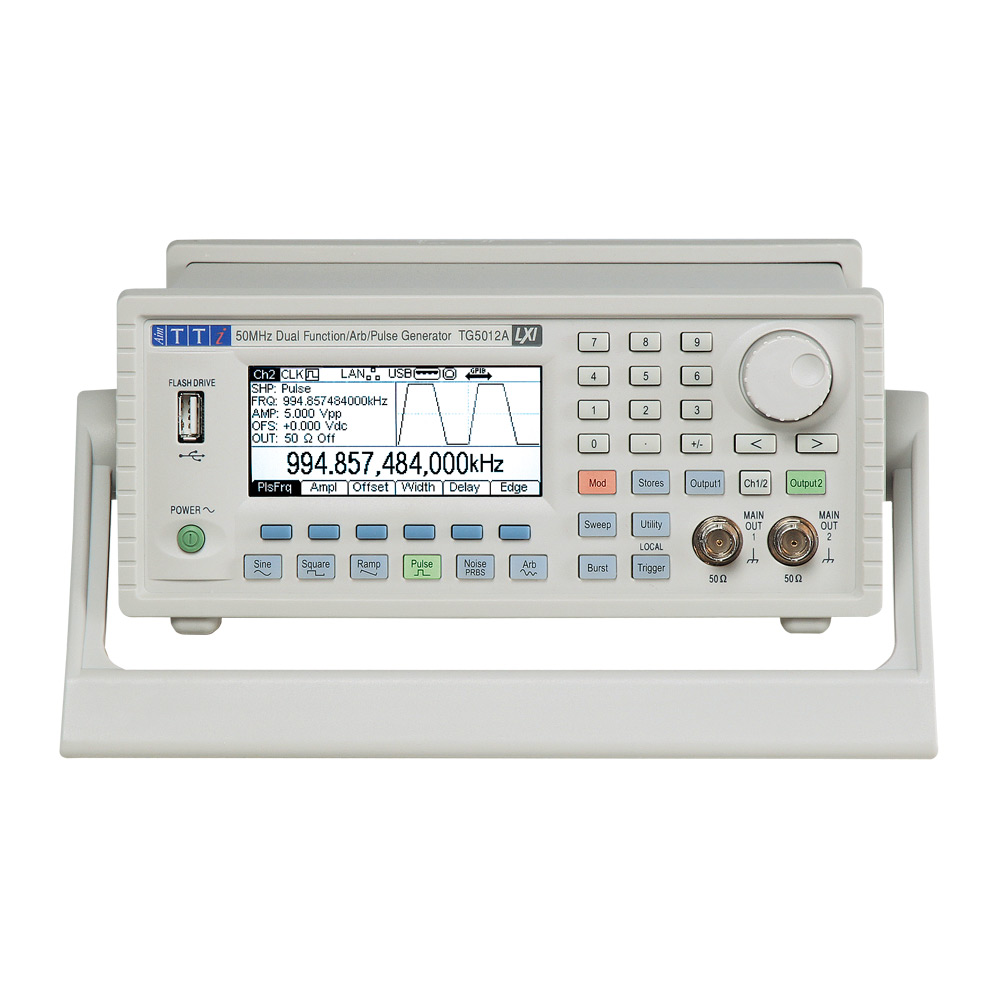

Aim TTI TG5012A High Performance Function/Arbitrary/Pulse Generator (50MHz, Two Channel)

STANDARD WAVEFORMS

- SINE

Frequency Range: 1µHz to 50MHz

Frequency Resolution: 1µHz, 14 digits

Output Level: 10mVp-p to 10Vp-p into 50Ω

Amplitude Flatness Relative to 1kHz: <100kHz 0.1dB, <5MHz 0.15dB, <25MHz 0.3dB, <50MHz 0.5dB

Harmonic Distortion: ≤1 Vp-p | ≥ 1Vp-p

DC to 20kHz -65dBc -65dBc

20kHz to 100kHz -60dBc -60dBc

100kHz to 1MHz -45dBc -45dBc

1MHz to 25MHz -40dBc -35dBc

25MHz to 50MHz -40dBc -28dBc

Non-Harmonic Spurii: <–60dBc to 1MHz, <–60dBc + 6dB/octave 1MHz to 50MHz

Phase Noise: -115dBc/Hz, typical (10kHz offset)

- SQUARE

Frequency Range: 1µHz to 50MHz

Resolution: 1µHz, 14 digits

Output Level: 10mVp-p to 10Vp-p into 50Ω

Rise and Fall Times: <8ns

Overshoot: <5%

- RAMP & TRIANGLE

Frequency Range: 1µHz to 1MHz

Resolution: 1µHz, 12 digits

Output Level: 10mVp-p to 10Vp-p into 50Ω

Linearity Error: <0.1% to 30 kHz

- PULSE

Frequency Range: 500 µHz to 12.5MHz

Resolution: 1µHz , 14 digits

Output Level: 10mVp-p to 10Vp-p into 50Ω

Overshoot: <5%

Edge Range: <8ns to 40µs

Delay Range: 0ns to 2000s

PRBS WAVEFORMS

Sequence Length: 7, 9, 11, 15, 20, or 23 stages (127 to 8,388,607 bit length)

Bit Rate: 1µbps to 50Mbps

Rise/Fall Times: Rise/Fall times can be varied (rise time = fall time).

Edge Range: <8ns to 40µs

OUTPUTS

- Main Output

Output Impedance: 50Ω

Amplitude: 20mV to 20Vp-p open circuit (10mV to 10Vp-p into 50Ω)

Amplitude Accuracy: 2% ±1mV at 1kHz into 50Ω.

DC Offset Range: ±10V. DC offset plus signal peak limited to ±10V from 50Ω.

DC Offset Accuracy: Typically 3% ±10mV.

Resolution: 3 digits or 1mV for both Amplitude and DC Offset

INPUTS

- Trig In

Frequency Range: DC - 1MHz.

Minimum Pulse Width: 50ns

Input Impedance: 10k W

- External Modulation Input (for AM, FM, PM, PWM)

Voltage Range: ± 5V full scale

Input Impedance: 5k W typical

Bandwidth: DC to 20kHz

- Ref Clock Input

Input for an external 10MHz reference clock

Voltage Range: 1Vpp – 5Vpp

Maximum Voltage: +5V

Minimum Voltage: -1V

GENERAL SPECIFICATIONS

AC Supply: AC Input: 100-240VAC ±10% 50/60Hz; 100-120VAC ±10% 400Hz; 60VA max. Installation Category II

Temperature & Environmental: Operating Range: +5ºC to +40ºC, 20% to 80% RH

Storage Range: -20ºC to + 60ºC

Safety & EMC: Safety: Complies with EN61010-1

EMC: Complies with EN61326

Physical: Size: Bench top use (H;W;L): 97mm (2.62”); 250mm (9.84”); 295mm (11.62”).

Rack mounted use (H;W;L): 86.5mm (3.4”); 213.5mm (8.4”); 69mm (10.59”); i.e. ½-rack x 2U.

Weight: 2.7 kg (5.95 lbs)

OPTIONS

- Rack Mount (RM200A): 19 inch 2U rack mount suitable for one or two generators.

- GPIB Interface (Option TG-GPIB): Retro-fittable GPIB (IEEE-488) interface card.
