Frequency Range: 10 MHz ~ 6000 MHz
Resolution: 10 MHz, 300 Hz
Accuracy: ± 1 ppm
Phase Noise:
At 1 GHz:
–83 dBc/Hz at 30 kHz offset
–99 dBc/Hz at 100 kHz offset
–116 dBc/Hz at 1 MHz offset
At 3 GHz:
–94 dBc/Hz at 30 kHz offset
–109 dBc/Hz at 100 kHz offset
–117 dBc/Hz at 1 MHz offset
At 6 GHz:
–83 dBc/Hz at 30 kHz offset
–97 dBc/Hz at 100 kHz offset
–114 dBc/Hz at 1 MHz offset
Amplitude Measurement:
Units: dBm / dBµV
Accuracy: ± 1 dB at 10 dB
Modes: Sweep, Zero Span, Trigger, Datalogging (option U02), Scan (option U02)
Memory: 1.8 GB internal memory, external storage via USB
Interface: USB
Power Supply: Li-ion battery 3.7V 3000mA-hr
Dimensions: 192 mm × 92 mm × 49 mm
Weight: 580 g

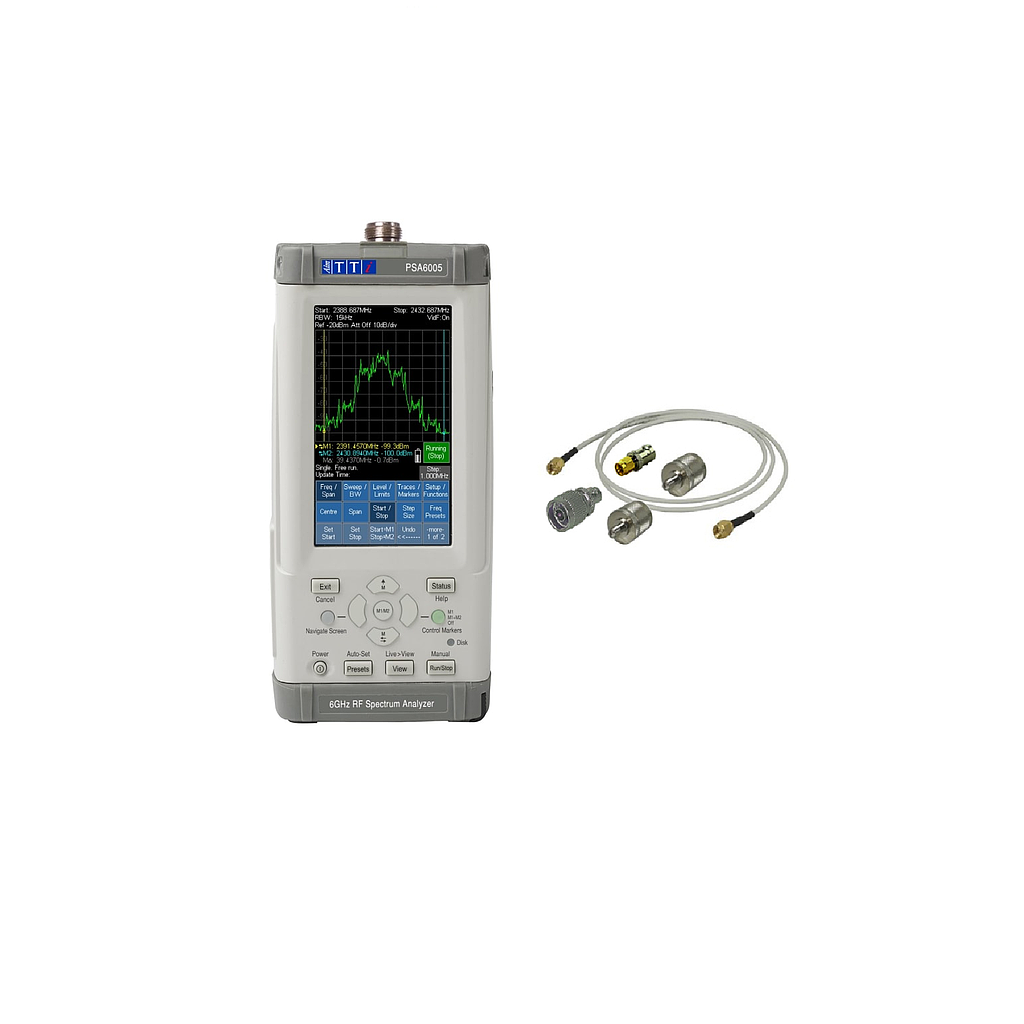

Standard Accessories Supplied: Main unit, USB cable, User Manual, CD, Battery charger
