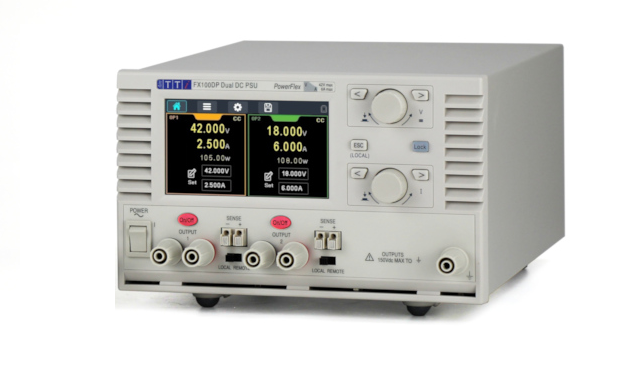

Aim TTI FX100DP DC Power Supply (2CH, 210W)

Number of outputs: 2

Voltage Range: Output 1 and 2: from 0V to 42V

Current Range: From 1mA to 6A

Power per output: Output 1 and 2: 105W

Total Power: Up to 210W

OUTPUT SETTING & CONTROL

Output Setting:

Direct entry of output voltage or current via touch control with on screen numeric keypad.

Individual V & I rotary knobs for simultaneous adjustment of output voltage and current settings.

Operating Mode: Constant voltage (CV) or constant current (CC) or constant power (CP) with automatic crossover

Output Switch

Independent electronic switching with LED ON indication.

In addition, each output key actions Multi-On and Multi-Off (if enabled from instrument menu).

Output discharge by weak internal pull-down.

Output sense: Selectable local or remote sensing.

Setting Resolution: 1mV, 1mA

Setting Accuracy:

Voltage: ± (0.1% of setting + 5mV)

Current: ± (0.1% of setting + 5mA)

Instrument Control: Instrument settings can be set using touch or V rotary knob to navigate, and press knob to confirm.

Status Indication: Indicators for Output ON, constant voltage mode, constant current mode, remote operation, trip & error messages on display.

OUTPUT CONNECTIONS:

Output Terminals: Front panel: Universal 4mm safety binding posts on 19mm (0.75”) spacing.

OUTPUT PERFORMANCE

Ripple & Noise (20MHz bandwidth):

Typically <2mV rms, <10mV pk-pk. 22mV pk-pk max for maximum load CV mode

Typically<2mA rms, <10mA pk-pk. 15mA pk-pk max for maximum load CC mode

HF Common Mode Noise (20MHz bandwidth): Typically <4mV rms, <30mV pk-pk , 50mV pk-pk max (Into 560ohm)

Load Regulation:

For any load change within the PowerFlex envelope, using remote sense:

Constant voltage (CV): <0.01% ± 5mV

Constant current (CC): <0.01% ±0.5mA

Line Regulation:

For a 10% line voltage change:

Constant voltage (CV): <0.01% ± 5mV

Constant current (CC): <0.01% ± 0.5mA

Transient Response:

To within 100mV of setting for a 5% to 95% load change: Typically <350µsec. Maximum 375µsec.

GENERAL

AC Input: 110V to 240V AC +/- 10%, 50/60Hz. Installation Category II

Power Consumption: 360VA maximum

Operating Range: 5°C to +40°C, 20% to 80% RH

Storage Range: –40°C to +70°C

Environmental: Indoor use at altitudes up to 2000m, Pollution Degree 2

Output Isolation: 150V pk to Ground

Size: 214 x 140 x 300mm (WxHxD)

Weight: <4 kg
