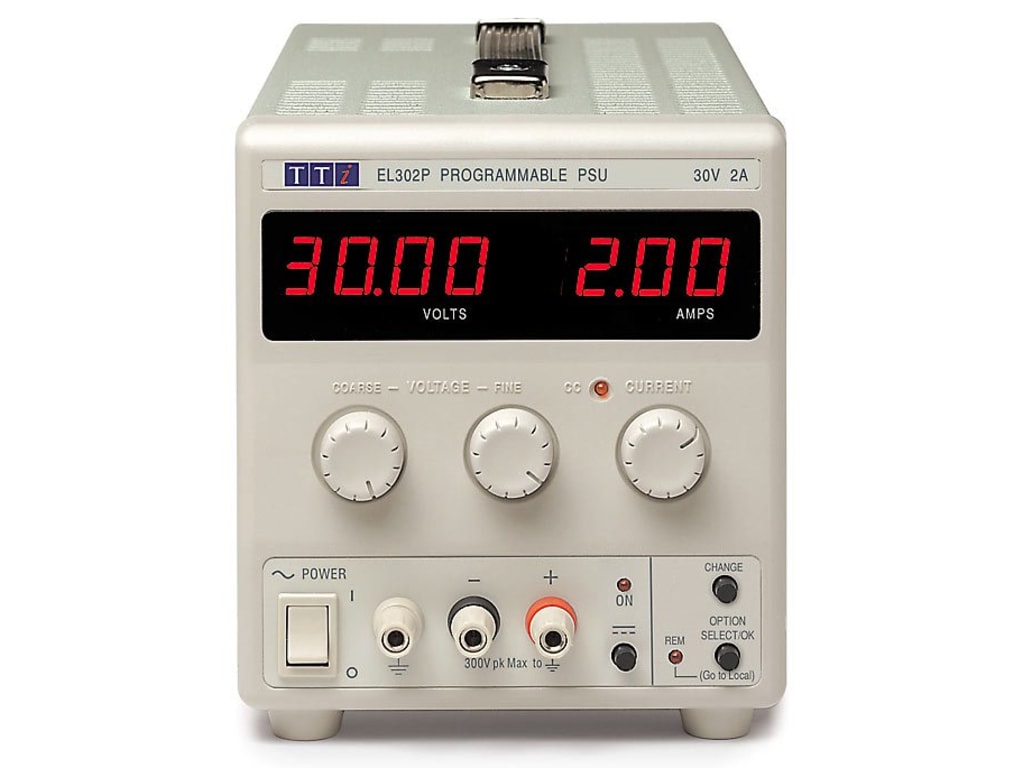

Aim TTI EL302P Bench DC Power Supply (30V, 2A, 60W, RS-232)

EL302P 0 to 30V; 0 to 2A (60W nominal power
Display Type: Dual 4-digit meters, 14mm (0·56”) LED.
Voltage Meter
Resolution: 100mV
Accuracy: 0·3% of reading ± 1 digits
Current Meter
Resolution: 10mA
Accuracy: 0·6% of reading ± 1 digits
AC Input: 230V AC or 115V AC ± 10%, 50/60Hz. Installation Category II
VA Ratings: EL301R - 85 VA; EL302R, EL302P, EL183R, EL561R - 160VA;
EL155R, EL303R - 250VA; EL302RD, EL302RT - 320VA
Safety & EMC
Safety: Complies with EN61010-1
EMC: Complies with EN61326
Physical
Size: Single output models - 140x160x295 mm (WxHxD).
Dual and triple output models - 260x160x295 mm (WxHxD).
Weight: EL301R - 3.4kg; EL302R, EL302P, EL183R, EL561R - 4.4kg:
EL155R, EL303R - 5.0kg; EL302RD, EL302RT - 7.5kg
