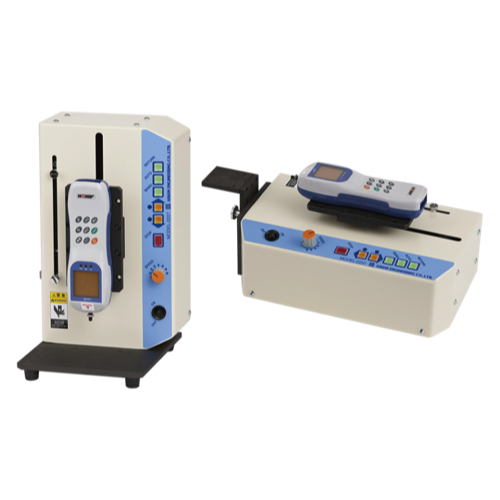

Aikoh 2257 Motorized Stand (500 N (50 kgf), 150 mm)

Maximum Force: 500 N (50 kgf)

Controller: Built-in

Test Speed: 10–200 mm/min

Speed Adjustment: Variable resistor

Stroke: 150 mm

Distance Between Test Center and Column: 49 mm

Table Size:

Vertical: W200 × D120 mm

Horizontal: W70 × D60 mm

Drive Motor: DC speed control motor

Dimensions: W215 × H380 × D235 mm (vertical)

Stand Mass: Approximately 20 kg

Power Supply: Single-phase 100–240 VAC, 0.5 A

Options:

Force gage

jig/fixture

cable

jig mounting plate OJ-P-90 (for tensile test)
