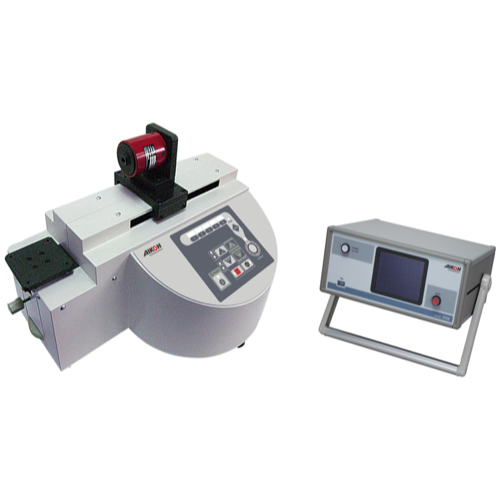

Aikoh 2152KE Horizontal Force Tester (500N (50kgf); 150 mm)

Max. force: 500N (50kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: MODEL-1018

Controller: Built in

Test speed: 10～80mm/min

Speed changing: 5 steps or stepless

Stroke: 150mm

Distance between test center and column: 77.5～117.5mm

Table size: W100×D100mm

Drive motor: DC brushless motor

Detector: Rotary encoder, resolution 0.01 mm

Display accuracy: 0.1mm

Dimensions: W518×H314×D345mm

Stand mass: Approx. 23 kg

Amplifier mass: Approx. 5.2kg

Power supply: Single phase, 100 VAC – 240 VAC, 0.5A

Standard set: Tester, force measuring amplifier MODEL-1018, load cell 1 piece

Options: Additional load cell, jig/fixture, software
