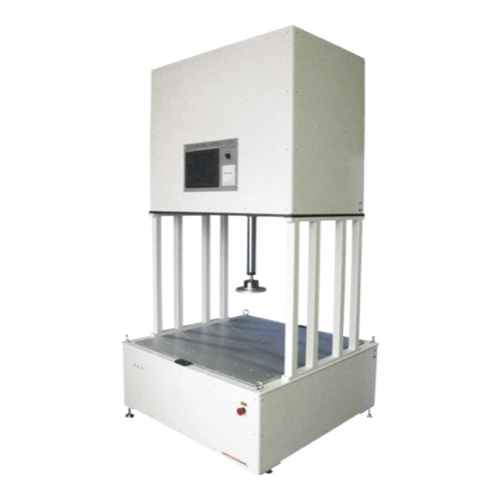

Aikoh 1900N Urethane Foam Load Measuring Tester (3kN (300kgf))

Measurement capacity: 3kN (300kgf)

Min. reading accuracy: 1N (0.1kg). 0.2% F.S.

Pressing force receiving table: W700×D700mm

Pressurizing plate: φ200mm±0.1mm

Pressurizing effective height: 350mmMAX

Test speed: 10～600mm/min

Preloading force: 1N～100N (0.1～10.0kgf)

Preloading time: 00m00s～99m59s

Down stop position: 1 – 99% (compression ratio)

Stop time: 00m00s～99m59s

Rest time: 00m00s～99m59s

Detector: Rotary encoder

Thickness detection accuracy: 350.0mm±0.1% F.S.

Drive mechanism: Ball screw

Drive motor: Servo motor

Drive record: Dot printer

Power supply: 100 VAC ±10%
