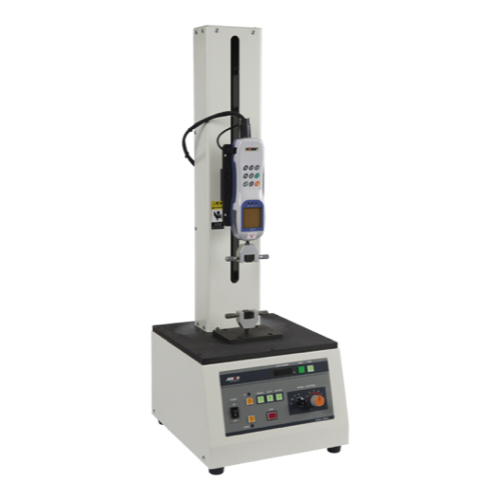

Aikoh 1309RZE Motorized Stand (1 kN (100 kgf); 400 mm)

Maximum Force: 1 kN (100 kgf)

Accuracy: Depends on the digital force gauge RZE used

Test Speed: 10–300 mm/min

Speed Settings:

LO:10 mm/min.

MD:100 mm/min.

HI:200 mm/min.

VR:10～300 mm/min.

*The above speeds are standard settings.

When specified on an order, the setting may be changed within the test speed range.

Stroke: 400 mm

Display Resolution: 0.1 mm

Displacement Indication (Max.): ±400 mm

Table Size: 295 × 175 mm

Mass: Approximately 35 kg

Dimensions: W300 × D340 × H850 mm

Power Supply: AC100V–120V / AC200–240V

Standard Set:

Tester,

dedicated PC software: RZ-3009

RZE connection dedicated cable

USB cablejig mounting plate OJ-P-90(for tentile test)

Options:

Digital force gauge: RZE Series

Jig/fixture
