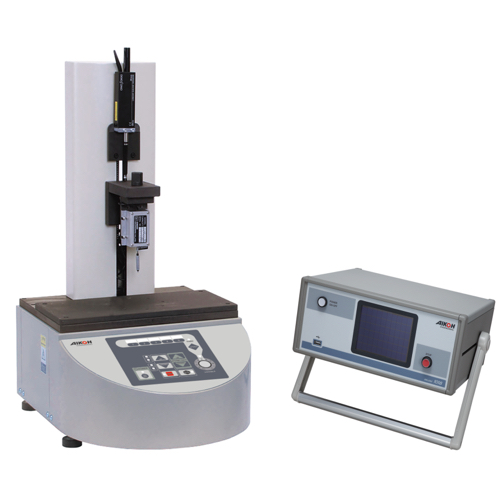

Aikoh 1305K Small Desktop Load Tester (200 N (20 kgf); 25mm)

Max. force: 200N (20kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: MODEL-1018

Controller: Built in

Test speed: 2～60mm/min

Speed changing: 5 steps or stepless

Test Stroke: 25mm

Distance between test center and column: 77mm

Table size: W330×D150mm

Drive motor: DC brushless motor

Detector: Linear gage

Display accuracy: 0.05mm

Dimensions: W340×H580×D430mm

Stand mass: Approx. 32 kg

Amplifier mass: Approx. 5.2 kg

Power supply: Single phase, 100VAC – 240VAC 0.5A

Standard set: Tester

force measuring amplifier MODEL-1018

load cell 1 piece

linear gage

Options: Additional load cell, jig/fixture, software, detector Model 0219
