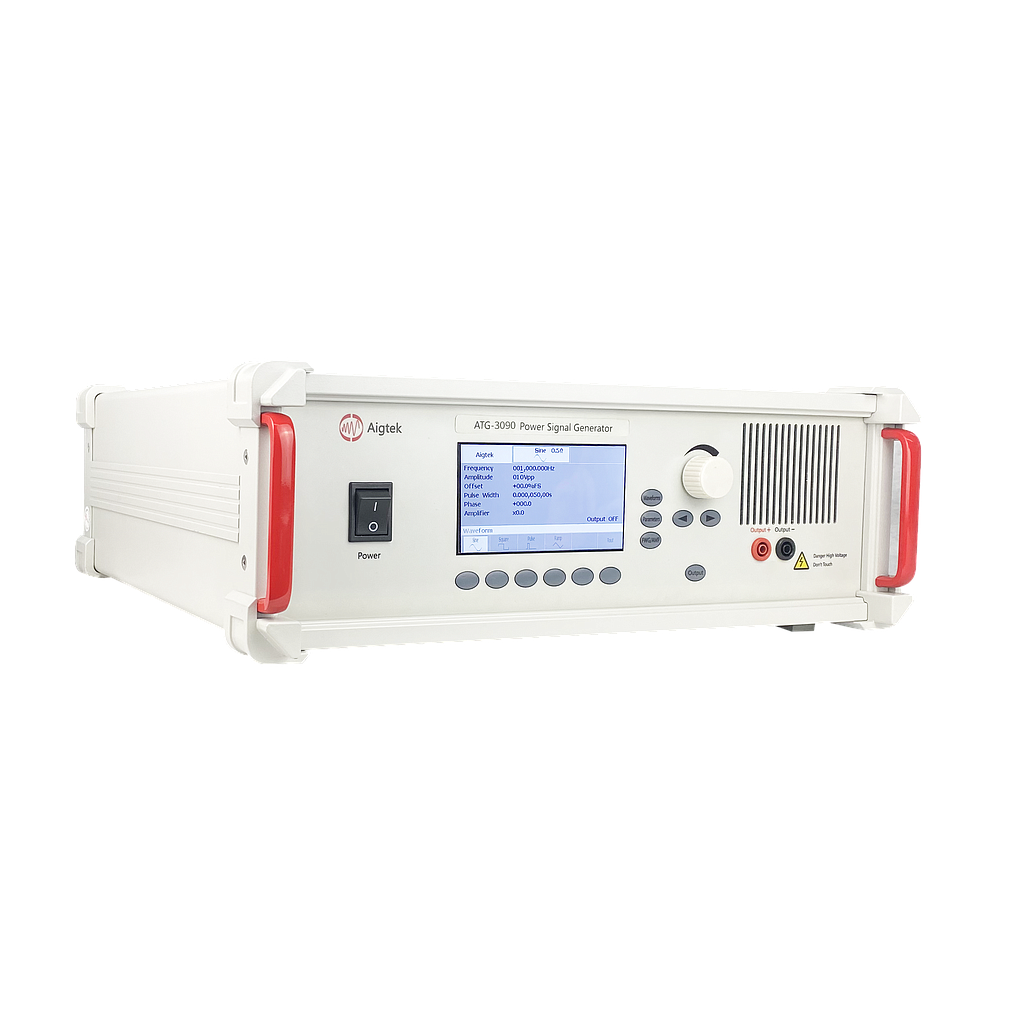

Aigtek ATG-3090 Signal Generator ((-3dB)DC to 100kHz, 90Vp-p(±45Vp), 18Ap, 810Wp, 1CH)
ManufacturerAigtek(View more products from this manufacturer)
ModelATG-3090
USD 14,442.35
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth (-3dB): DC~100kHz
Output form: Single-endoutput
Maximum output voltage: 90Vp-p（±45V）
Maximum output current: 18A
Maximum output power: 810W
Voltage gain: 0~30(0.1step)
Input resistance (Rin): 50Ω / 5kΩ
Input waveform amplitude: 10Vp-pMAX
Output resistance (Rout): 0.3Ω/ 50Ω customizable
Slew rate: 50V/μs
Load limit (RL): ≥2.5Ω
