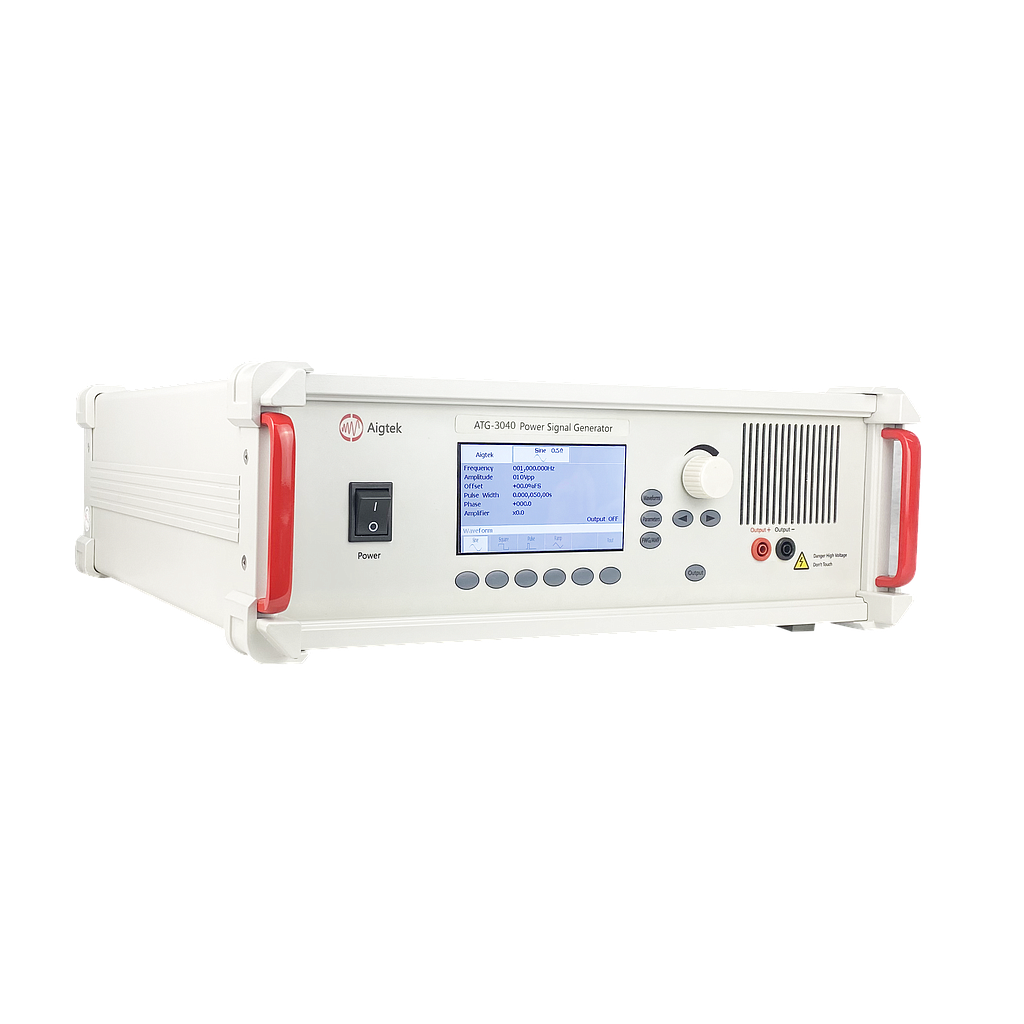

Aigtek ATG-3040 Signal Generator (（-3dB） DC to 100kHz, 90Vp-p(±45Vp), 8Ap, 360Wp, 1CH)
ManufacturerAigtek(View more products from this manufacturer)
ModelATG-3040
USD 10,971.53
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Bandwidth (-3dB): DC~100kHz
Output form: Single-end output
Maximum output voltage: 90Vp-p（±45V）
Maximum output current: 8A
Maximum output power: 360W
Voltage gain: 0~30(0.1step)
Input resistance (Rin): 50Ω / 5kΩ
Input waveform amplitude: 10Vp-pMAX
Output resistance (Rout): 0.1Ω / 50Ω customizable
Slew rate: 50V/μs
Load limit (RL): ≥5.6Ω
