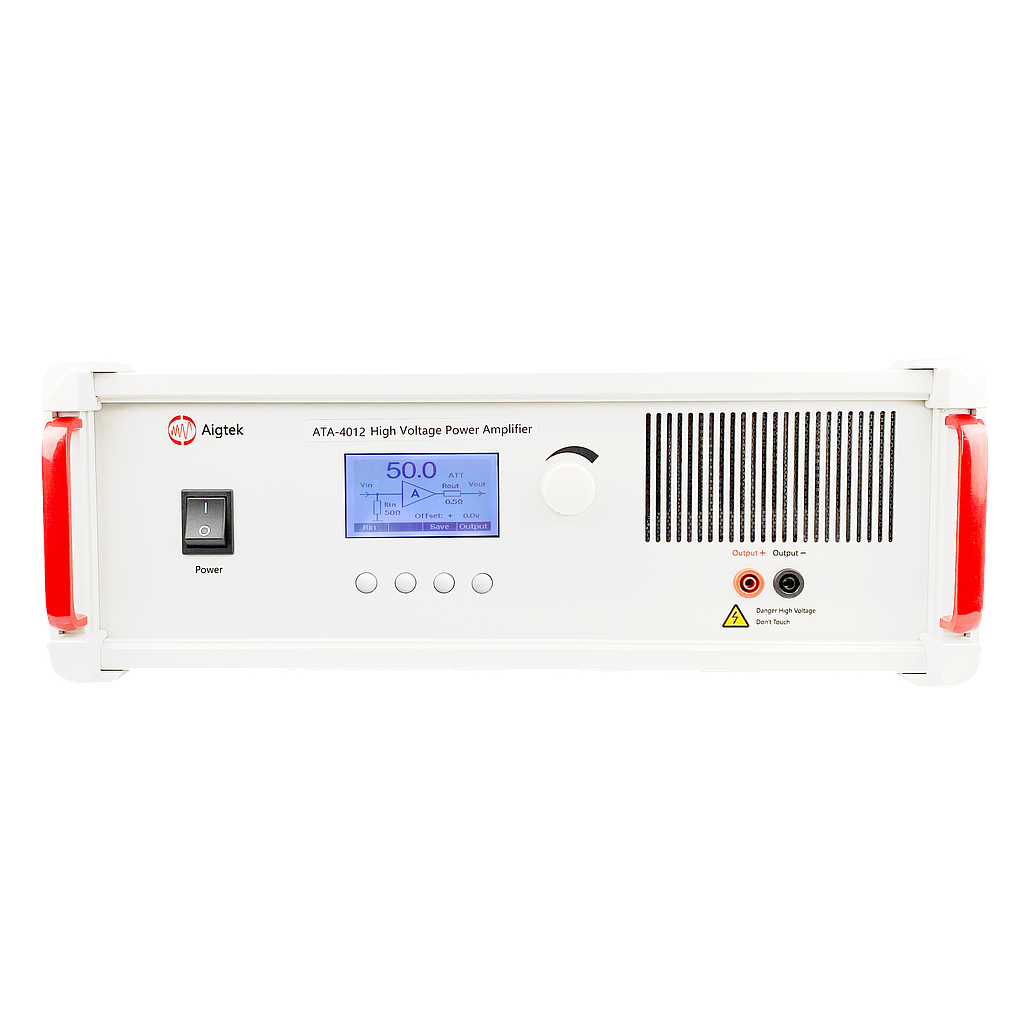

Aigtek ATA-4012 High Voltage Power Amplifier ((-3db) DC ~ 1MHz, 160Vp-p (±80Vp), 2 Arms, 225.6Wp, 1CH)

Output form: Single output

Bandwidth（-3dB）: DC~1MHz

Maximum output voltage: 160Vp-p(±80Vp)

Maximum output current: 1Ap(DC-50Hz), 2.82Ap，2Arms （50Hz~1MHz）

Maximum output power: 225.6Wp

Fuse: 8A/250V

Voltage gain: x0~50(0.1step)

Load RL upper limit: ≥28.3Ω (above 50Hz)

Output impedance: 0.5Ω＋1.2uH

Slew Rate: 400V/μs

DC bias: ±75V(0.1Vstep)

Input impedance: 50Ω / 5kΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3%FS@1kHz

Voltage monitoring: 100:1（±5%）

Total harmonic distortion （THD）: ≤0.1%@1kHZ，100Vp-p

Output voltage zero-point drift: ≤0.1V

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%，50Hz

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80% RH，no condensation

Size(W * H * D): 440*163*470mm
