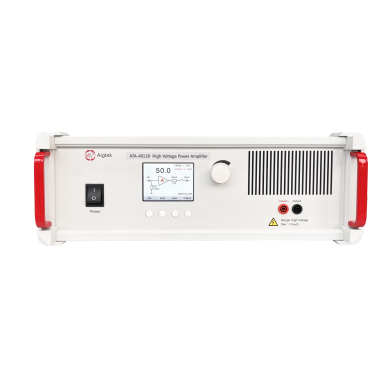

Aigtek ATA-4011B High Voltage Power Amplifier (DC~1.2MHz, 160Vp-p（±80Vp）)

No. Of Channel: 1

Form of Output: Single-ended output

Bandwidth（-3dB）: DC~1.2MHz

Max. Output Voltage: 160Vp-p（±80Vp）

Max. Output Current: 0.5Ap（ DC~50Hz）

1.41Ap（ ＞ 50Hz）

Max. Output Power: 112.8Wp

Fuse: 5A/250V

Voltage Gain: x0~50（0.1 step/1 step）

Upper Limit of Load RL: ≥159Ω（DC~50Hz）

≥55.7Ω（＞50Hz）

Slew Rate: ≥426V/μs

DC Offset: ±75V（0.1V step/1V step）

Output Impedance: 1Ω+2μH

Input Resistance: 50Ω / 10kΩ

Input Amplitude: 0~10Vp-pMAX

Output Voltage Error: ≤±3%FS@1kHz

Voltage Monitor: 20mV/V

Current Monitor: 1V/A

THD: ≤0.1%@1kHz，100Vp-p

Zero Drift of Output Voltage: ≤±0.1V

Signal-noise ratio (SNR): ≥80dB

Output Connector: 4mm banana connector

Protection: Over current protection

Signal Ground: Connected to the case and power line

Supply Voltage: AC110~240V，50/60Hz

Operating Temperature: 0°C ~ 45°C

Storage Temperature: -20°C ~ 50°C

Humidity: ≤80% RH，no condensation

Dimension: 440*163*470mm (w * h * d)
