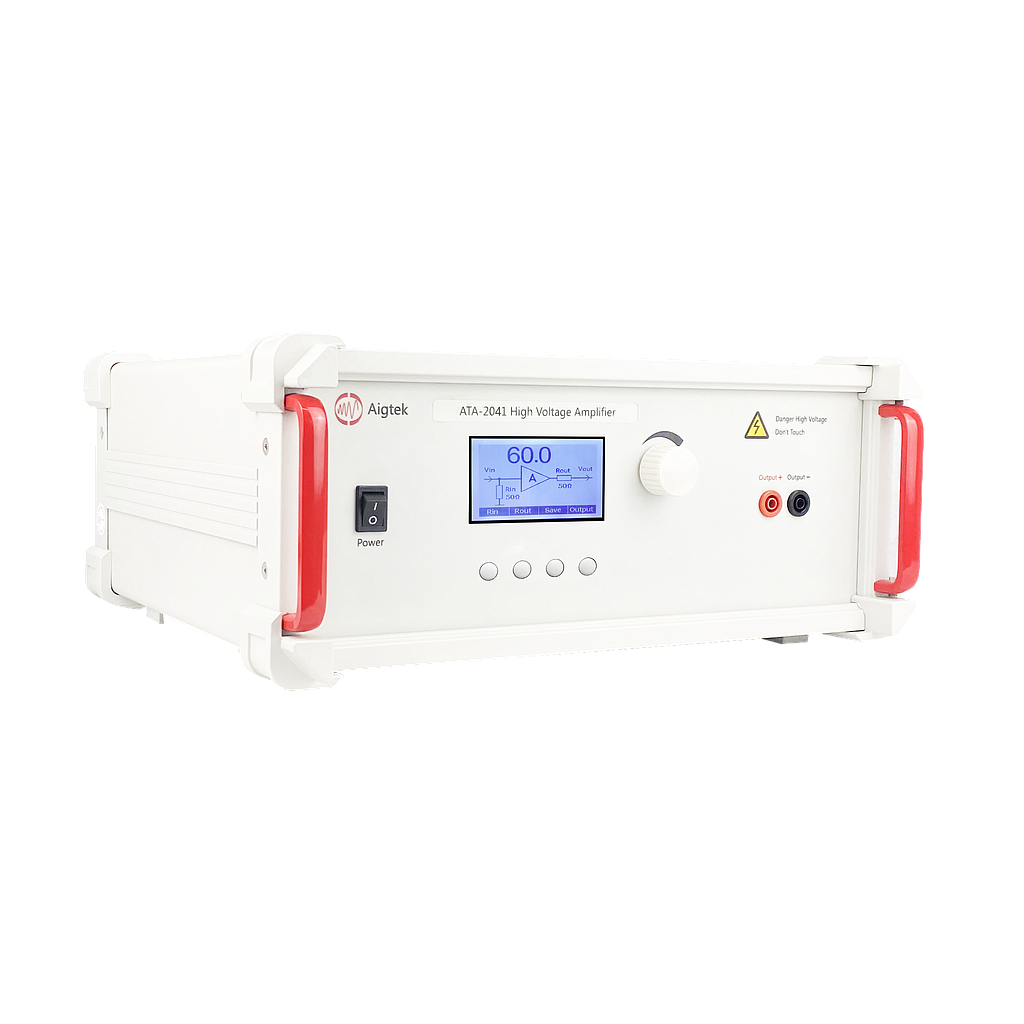

Aigtek ATA-2041 High Voltage Amplifier ((-3dB) DC ~ 500kHz, 400Vp-p (±200Vp), 100mAp, 20Wp,1CH)

Number of channels: 1

Output form: Single output

Bandwidth（-3dB）: DC~500kHz

Maximum output voltage: 400Vp-p（±200Vp）

Maximum output current: 100mAp

Maximum output power: 20Wp

Voltage gain: x0~60（0.1 step）

Load RL upper limit: ≥2kΩ

Output resistance: 50Ω /2.5kΩ (Customizable）

Slew Rate: 500V/μs

Input resistance: 50Ω / 5kΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3% FS@1kHz

Voltage monitoring: 100:1（±5%）

Total harmonic distortion （THD）: ≤0.1%@1kHz，100Vp-p

Output voltage zero-point drift: ≤0.3V

Signal-noise ratio(SNR): ≥80dB

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%，50Hz

Fuse: 2A/250V

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: 80%RH，no condensation

Size (W * H * D): 365*163*365mm
