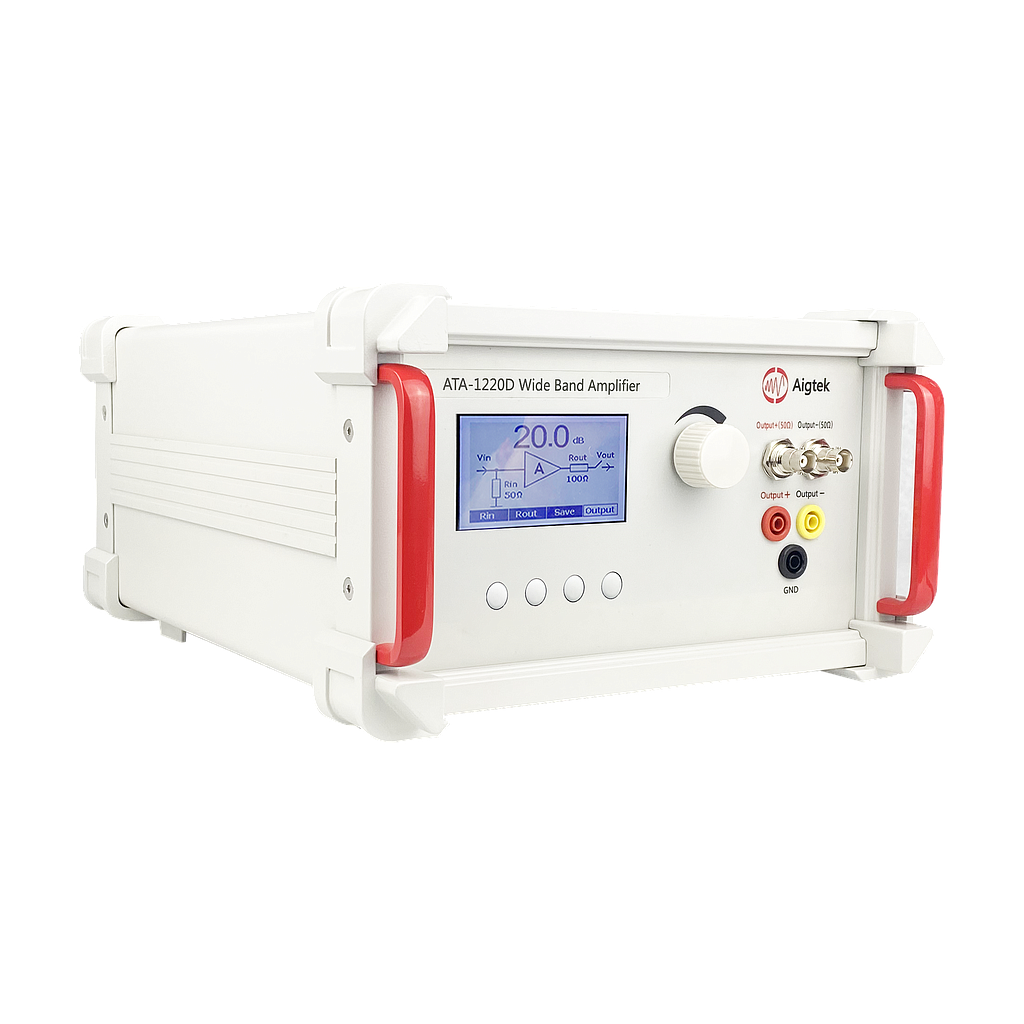

Aigtek ATA-1220D Wide Band Amplifier ((-3dB) DC~21MHz, 60Vp-p (± 30Vp), 1Ap, 30Wp, 1CH)

Output form: Differential output

Bandwidth (-3dB): DC~21MHz

Maximum output voltage: 60Vp-p (±30Vp)

Maximum output current:

500mAp (DC~50Hz)

1Ap (50Hz~21MHz)

Maximum output power: 30Wp

Voltage gain: 26dB adjustable (0.5dBstep)

Load RL upper limit: ≥30Ω (above 50Hz)

Slew Rate: 2800V/μs

Output resistance: 2Ω/ 100Ω

Input resistance: 50Ω / 1MΩ

Input amplitude: 0~10Vp-pMAX

Output voltage error: ≤±3%FS@1kHz

Total harmonic distortion (THD): ≤0.1%@1kHz，30Vp-p

Output voltage zero-point drift: ≤0.1V

Signal-noise ratio (SNR): ≥80dB

Output Connector: BNC、4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%，50Hz

Fuse: 1A/250V

Operating temperature: 0℃~45℃

Storage temperature: -20℃~50℃

Humidity: ≤80%RH，no condensation

Size (W * H * D): 262*163*365mm
