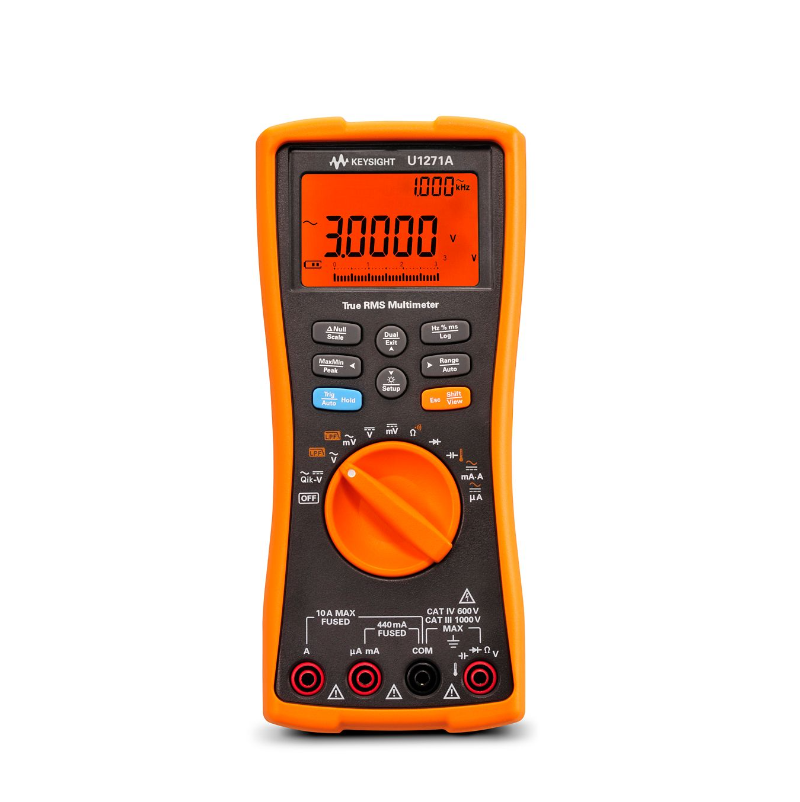

KEYSIGHT U1271A Digital Multimeter (0.05%; IP54; Low pass filter; datalogging)

- High Resolution

- True RMS AC

- Display resolution 30,000

- AC bandwidth: 20Khz

- Voltage DC:

30.000mV, 300.00mV, 3.000V,

30.000V, 300.001V, 1000.0V/ 0.05%

- Voltage AC (True RMS):

30.000mV, 300.00mV, 3.000V,

30.000V, 300.001V, 1000.0V / 0.7%

- Current DC:

300.00 μA, 3000.00 μA, 30.000 mA, 300.00 mA /0.2%

3.0000 A, 10.000 A /0.3%

- Current AC (True RMS):

300.00μA, 3000.00μA, 30.000 mA, 300.00mA /0.9%

3.0000 A, 10.000 A /1%

- Resistance:

30.000Ω, 300.00Ω, 3.0000kΩ, 30.000kΩ, 300.00 kΩ / 0.2%

3.0000MΩ, 30.000MΩ, 300.00 MΩ, 300.00 nS /0.6%

- Diode: Yes

- Capacitance:

10.000nF, 100.00nF, 1000.0nF, 10.000μF,

100.00μF, 1000.0μF, 10.000mF /1%

- Frequency: 99.999-999.99Hz / 0.05%

- Thermocouple type: J (-200 to 1372°C), K(-210 to 1202°C)/ 1% (Option type J)

- % Scale 4-20mA: Yes

- Smart Ω: Yes

- Manual data logging: yes

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

- Dust and water resistant casing: IP 54

Power supply: 4 pin AAA

Dimensions: 207.0x92.0x59.0

Included Accessories: Test lead set; K-type thermocouple and adapter; Quick start guide; Batteries; Test report; Certificate of calibration

Datasheet

Brochures

Optional Accessories

U1583B: AC current clamp

U1186A: Thermocouple (K-type, 1m) and adapter

U1185A: Thermocouple (J-type) and adaptor

U1184A: Adaptor, temperature probe

U1183A: Probe, air

U1182A: Surface probe, industrial

U1181A: Immersion probe type K

U1174A: Carrying case, soft

U1172A: Transit case for handheld DMM, aluminum-clad

U1171A: Magnetic hanging kit

U1164A: Test probes, fine tip

U1163A: Grabbers, SMT

U1162A: Alligator clip

U1169A: Test Probe Leads (with 19-mm tips and 4-mm tips)

U1177A: Infrared (IR)-to-Bluetooth class 2 (10meter) adapter

U1176A: LED flash light

U1168B: Test lead kit

U1117A: Infrared (IR)-to-Bluetooth class 1 (100meter) adapter with Mfi

U1115A: Bluetooth class 1 (100meter) remote logging display

U1118A: Remote connectivity kit (100meter) with U1115A and U1117A

U1173B: IR-USB cable, all U1200 series handheld multimeter VOLT: DC 3.3V - 5V
