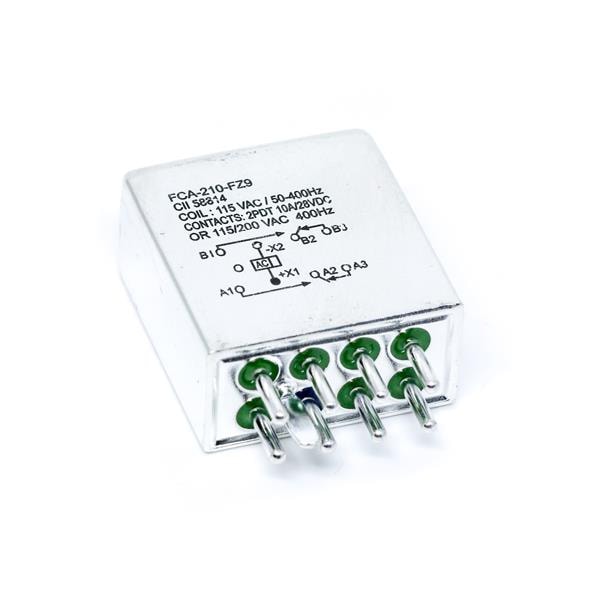

Agastat - TE Connectivity FCA-210-FZ9 Mid Range Relay FCA-210-FZ9
ModelFCA-210-FZ9
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 26.04 mm
Height: 25.65 mm
Length: 43.64 mm
Coil Type: Non-Latching
Coil Current: 30 mA
Coil Voltage: 115 VAC
Mounting Style: Through Hole
Coil Resistance: 3.8 kOhms
Coil Termination: Solder Pin
Contact Material: Silver Cadmium Oxide (AgCdO)
Switching Voltage: 115 VAC, 200 VAC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 10 A
