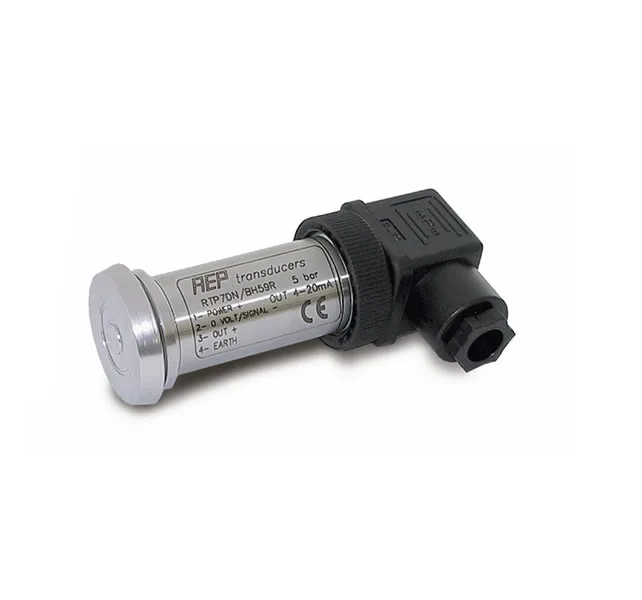

AEP Transducers TP7DN Pressure transducer (1 - 2.5 - 5 - 10 - 20 - 50 bar)

Relative Pressure (R)( Zero At Atmospheric Pressure): 1 - 2.5 - 5 - 10 - 20 - 50 bar

Linearity And Hysteresis : ≤ ± 0.25 %

Temperature Effect (1°C):

a) on zero: ≤ ± 0.015%

b) on sensitivity: ≤ ± 0.015%

Nominal Sensitivity : 4-20mA (2 or 3 wires); 0-5 V, 0-10 V

Tolleranza Di Calibrazione Calibration Tolerance ≤ ± 0.1%:

Alimentazione Nominale Nominal Power Supply : 4-20mA and 0-5V: 12-24Vdc; 0-10V : 15-24Vdc

Max. Power Supply: 28Vdc

Max. Absorption::

a) 3 wires: 30mA

b) 2 wires: 20mA

Loading Resistance::

a) tension: min. 3KΩ

b) current: from 0 to 470Ω

Insulation Resistance: >2 GΩ

Zero Balance: ± 10% ADJ.

Response Frequency: 0.5 kHz

Limit Mechanical Values Referred To Nominal Pressure::

a) service pressure: 100%

b) max. permissible pressure: 150%

c) breaking pressure: >300%

d) highly dynamic pressure: 75%

Reference Temperature: +23°C

Working Temperature Range: -10/+70°C

Storage Temperature Range: -20/+80°C

Process Coupling : DN 20

Protection Class (En 60529): IP65

Sensor Execution Material: INOX 17-4 PH

Electrical Connection: DIN 43650 Connector - A/ISO 4400
