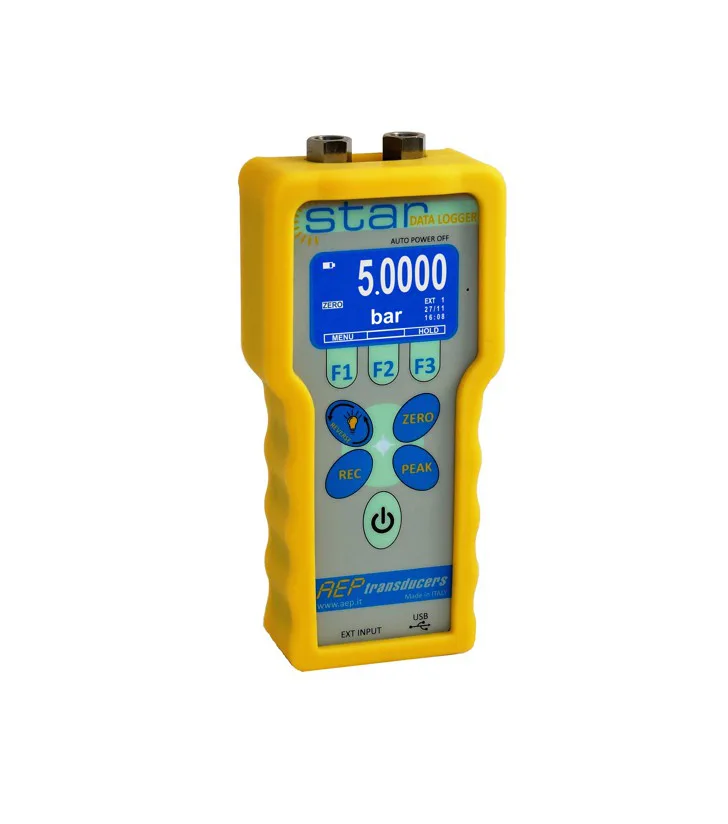

Relative Pressure: 2.5 bar
Main characteristics:
PRESSURE internal sensor ACCURACY: 0.10% F.S. (ON REQUEST 0.05% F.S.)
External channel ACCURACY: 0.01% F.S.
REFERENCE temperature 23°C, Service temperature from 0 to +50°C
Temperature effect (10°C): on zero ≤ ± 0.01%, on full scale≤ ± 0.01%
External INPUT signal 2mV/V (350Ω or 700Ω 4 wires system) 5Vdc power supply
Standard resolution ±50.000 divisions at 2mV/V
HIGH RESOLUTION (128x64 dots) LCD graph DISPLAY with 3 levels of backlighting to adapt itself to any conditions of external brightness and with the possibility of rotating the visualization of 180°.
AUTOMATIC recognition of FORCE, WEIGHT, VACUUM, PRESSURE, TORQUE and DISPLACEMENT external transducers (max. 7)
Programmable MEASUREMENT UNIT:
+ FORCE and WEIGHT: kg - g - t - N - daN - kN - MN – lb - klb
+ PRESSURE: bar-mbar-psi-MPa-kPa-Pa-mH2O-inH2O-kg/cm2-mmHg-cmHg-inHg-atm
+ TORQUE: Nm – Nmm – kgm – kNm - in.lbf - ft.lbf – gcm - kgmm
+ LENGTH: mm – inch
DIGITAL CALIBRATIONS protected by Password with full scale programming or with the “LINEARIZATION by points” of transducers, for every transducer it is possible to separately calibrate both the positive and the negative field. (Example: Tension and Compression)
DATALOGGER allows to memorize measurements and to keep them in the internal memory even in case of instrument switching off. (max. 130.000 recordings)
Recording can be performed either in AUTOMATIC mode by programming the test time (from 0.1 sec to 24 hours) and the acquisition time (max 0.1 sec) or in MANUAL mode using the REC key. The data can be then showed on the display or downloaded through the powerful software Quick Analyzer for creating graphs, exports in Excel, printing of reports etc.
Programmable RESOLUTION.
Digital FILTER and CONVERSIONS per SECOND (from 5 to 4800) programmable
ZERO function that allows to instantly set to zero the measurement.
HOLD function that allows to temporarily “freeze” the measurement to be able to analyze it.
PEAK function (positive e negative).
Li-Ion internal battery which ensures a 24 hours AUTONOMY when backlighting is activated.
In DATALOGGER mode by setting a recording every 5 min. it is possible to perform recordings for approx. 100 hours without recharging the instrument.
AUTO POWER OFF programmable function from 1 up to 99 minutes
CLOCK function (hours, minutes) and internal CALENDAR (day, month).
Serial communication through USB port Max 20 data/second, WIRELESS data Transmission (REQUEST) Max 10 data/second.
Protection grade (EN 60529) IP40
Glass-fiber reinforced technopolymer case with silicone protective COVER, weight ~ 0.7 kg
