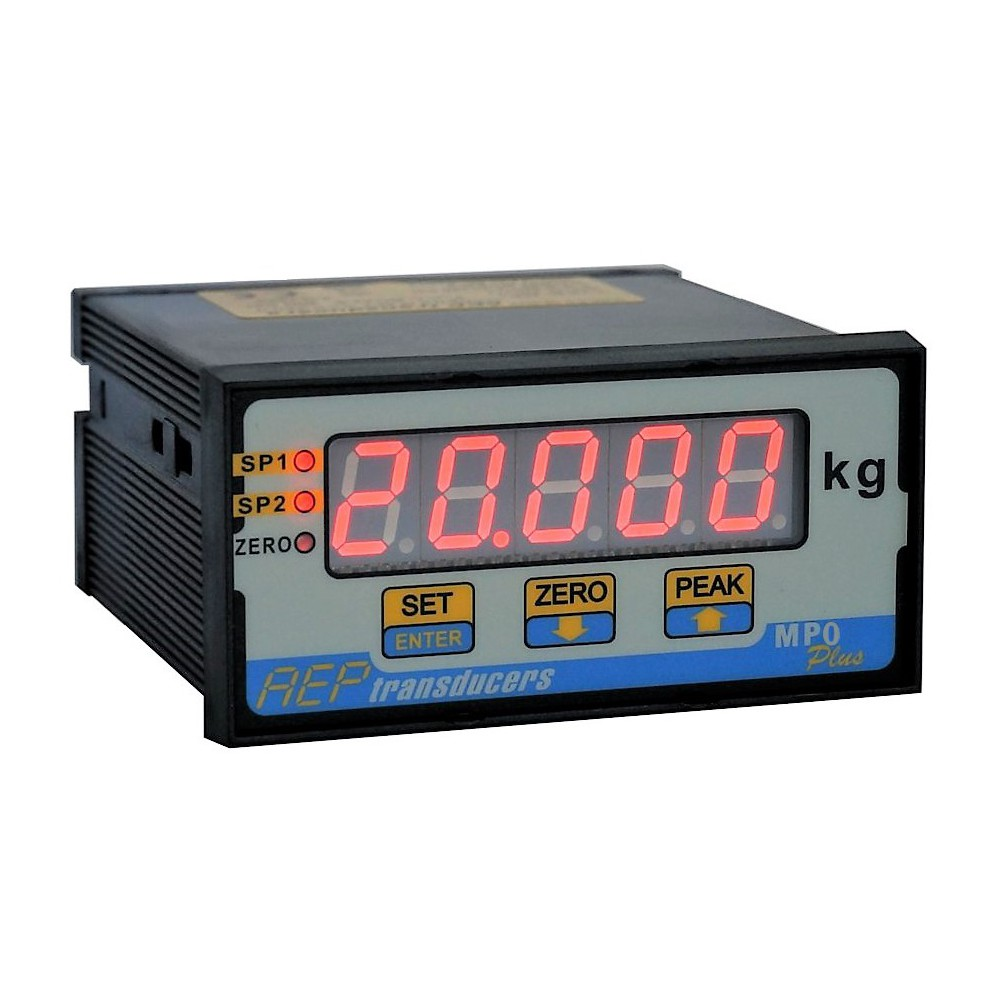

AEP Transducers MP0PLUS Professional Digital Panel Indicator

Accuracy: ≤± 0.02 %

Linearity Error: ≤± 0.02 %

Internal Division: 24 bit

Strain Gauge Input: ± 2 mV/V (max ± 2.5 mV/V)

Resolution: ± 20.000 div

Power Supply For Transducers: 5 Vdc

Type Of Connection: 4 wires

Transducer Resistance: da 100 Ω a 2000 Ω

Transducer That Can Be Connected In Parallel: 4 of 350 Ω or 8 of 700 Ω

Voltage Input Amplified Transducer: ± 10 V / ± 5 V

Resolution: ± 20.000 div

Power Supply For Transducers: 24Vdc(*)

Current Input Amplified Transducer: 0-20 mA ; 4-20 mA

Resolution: +20.000 div ; +20.000 div

Power Supply For Transducers: 24Vdc(*)

Input For Potentiometers: R min. 1 kΩ

Power Supply: 5 Vdc

7 Segment Display Color: RED

Number Of Digit: 5

Character Height: 14 mm

Sensor Calibration: POSITIVE AND NEGATIVE range

Type Of Digital Calibration: Full Scale

Zero Function: 100% (allowed on all measurement range)

Zero Lock Function (Loc): YES

Peak Function: POSITIVE AND NEGATIVE

Programmable Resolution: 1 … 100

Programmable Digital Filter: 0 … 5

Point Position Programmable: 0 … 5

Programmable Acquistion Frequency: From 2.5 to 1200 samples for second

Programmable Set Point: 2

Digital Input With Programmable Function: 1

Relays Output With Exchange Contacts: 2

Max Voltage To The Contacts: 24 Vdc

Max Current: 500 mA

Max Power: 12 W

Nominal Temperature Range: 0... +50 °C

Max Temperature Range: 0... +50 °C

Storage Temperature Range: -20... +70 °C

Effects On A 10°C Temp. Variation On Zero: <± 0.005 %

Effects On A 10°C Temp. Variation On Full Scale: <± 0.005 %

External Power Supply: 24Vdc (min.15Vdc max.30Vdc)

Max Current: 200 mA

External Protection Fuse: 250 mA / 250 V

Max Power: 5W a 24Vdc

Panel Container: DIN 43700

Container Material: NORYL UL94 V-O

Material Front And Rear Panel: UL94 V-2

Protection Class (En 60529): IP40 (only front panel)

Environmental Pollution Grade: 1

Dimensions (A X L X P) Mm: 48 x 96 x 103mm

Hole Gauge (A X L) Mm: 44,5 x 91,5 mm

Weight: ~ 0.5 kg
