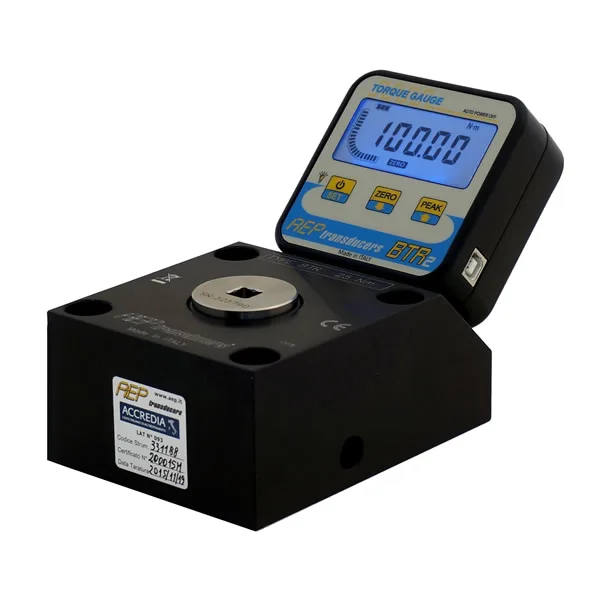

AEP Transducers MBTR2-2000NM Digital Torque Gauge (2000NM, w/ option sensor + accessories)

With option: sensor + accessories

Precision class uni 113114 (euramet cg-14) : 1 from 10% to 100% f.s

Linearity and hysteresis:. ≤0.20 % f.s.

Nominal torque (f.s.) 2000 n•m

Internal resolution : 24 bit

Direct reading: conversion per second: 10 hz

Peak mode: conversion per second: 4800 hz

Reference temperature : +23 °c

Service temperature range : 0 / +50 °c

Storage temperature range:  -10 / +60 °c

10°c temperature effect

a) on zero : ≤ 0.015 %

b) on sensitivity : ≤ 0.005 %

Programmable resolution : 1, 2, 5, 10

Programmable digital filter : from 0 to 10 (direct reading)

Zero function : 100 % f.s.

Peak function : clockwise and counterclockwise

First peak function programmable : from 1 to 99 % f.s.

Peak auto reset programmable : clear the peak after a set time

Auto power off function :  from 1 to 30 minutes (no changes)

Key block function (lock) to protect parameters from changes

Measurement units: kn•m - n•m - n•cm - dan•m - kgf•m ozf•ft - lbf•ft - ozf•inch - lbf•inch Communicaton port : USB 2.0

Mode continuos transmission mode : 4800 values per second

On demand transmission : on demand

Max distance: 5 m

Power supply by internal battery : li-ion 1800ma/h 3.6v rechargeable

Battery recharge : through usb

Battery life : 80 hours

Time to recharge:   8 hours

Mechanical features

Process coupling (uni iso 1174-1): 1” female

Mechanical limit values:

 a) service torque : 100 % f.s

b) max. permissible torque : 150 % f.s.

c) breaking torque. >300 % f.s.

Tightening wrench: 27 mm

Tightening torque: 28 n•m

Protection class (EN60529): IP40

Sensor execution material: inox 17-4 ph

Case execution: material alluminium and steel
