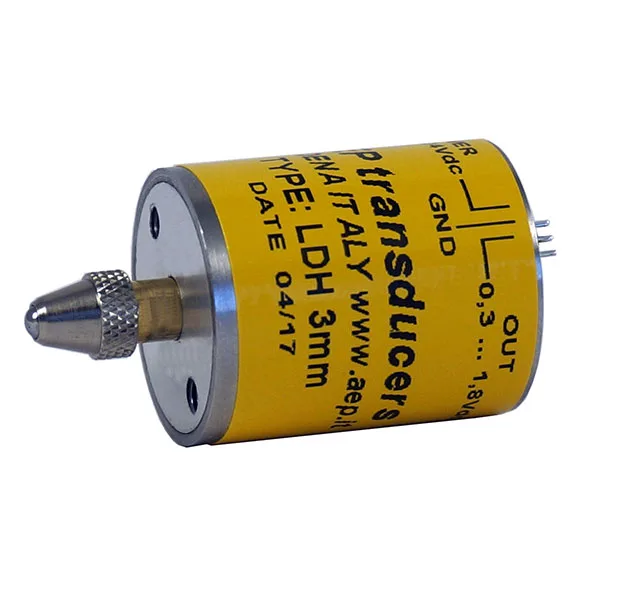

AEP Transducers LDH Hall Effect Displacement Transducer (IP40; 3mm)

Nominal Displacement: 3 mm

Nominal Sensitivity: 0.3... 1.8 Volt (1.5 Volt)

Sensivity Tolerance: < ±10% F.S.

Zero Balance: < ±5% F.S

Linearity: <±1% F.S.

Insulation Resistance: > 5 GΩ

Recommended Supply Voltage: 12V

Nominal Supply Voltage Range: 5…24V

Maximum Supply Voltage: 30 V

Reference Temperature: +23°C

Working Temperature: -10/+70°C

Storage Temperature: -20/+80°C

Weight: ~ 0.150 kg

Spring Force: ~4N

Protection Class (En 60529): IP40

Material: Alluminio e Acciaio inox

Electrical Connection: pin a saldare
