Precision Class : ≤ ± 0.50 %
Nominal Load : 20 kN
Linearity: ≤ ±0.20 %
Hysteresis: ≤ ±0.20 %
Ripetibility: ≤ ±0.05 %
Conversion Per Second: 10 Hz
Reference Temperature: +23 °C
Working Temperature: 0 / +50 °C
Storage Temperature: -10 / +60 °C
Temperature Effect 10 °C::
a) on zero: ≤ ± 0.010 %
b) on sensitivity: ≤ ± 0.025 %

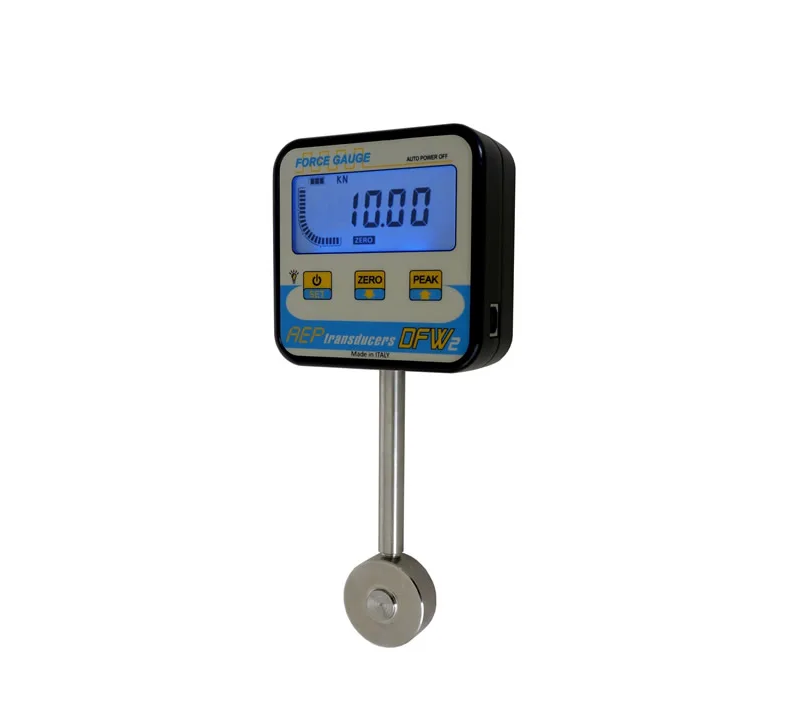

Custom Lcd Display
Character Height 16 Mm
Programmable Backlight From 1 To 60 Seconds
Backlight: Led Blu
Bar Graph Analog Indication
Programmable Resolution: 1, 2, 5, 10
Programmable Digital Filter: from 0 to 10
Zero Function: 100 % F.S.
Peak Function: POSITIVE/NEGATIVE
Auto Power Off Function: From 1 to 30 minutes (no load changes)
Key Block Function (Lock): To protect parameters from changes
Measurement Unit Kn - Dan - N - T - Kg - Lb: kN - daN - N - t - kg - lb
Communication Port: USB 2.0
Max Distance: 5m
Power Supply By Internal Battery: Li-Ion 1100mA/h 3.6V RECHARGEABLE
Battery Recharge: Through USB
Autonomy: 1 month (Backlight disabled)
Time To Recharge: ~ 8 hrs
Mechanical Limit Values::
a) service load: 120%
b) max permissible load: 150%
c) breaking load: >300 %
d) maximum transverse load: 50%
e) max dynamic load: 50%
Displacement At Nominal Load: ~ 0.2 mm
Protection Class (En 60529): IP40
Sensor Material: 17-4 PH STAINLESS STEEL
Enclosure: ALUMINUM and STEEL
