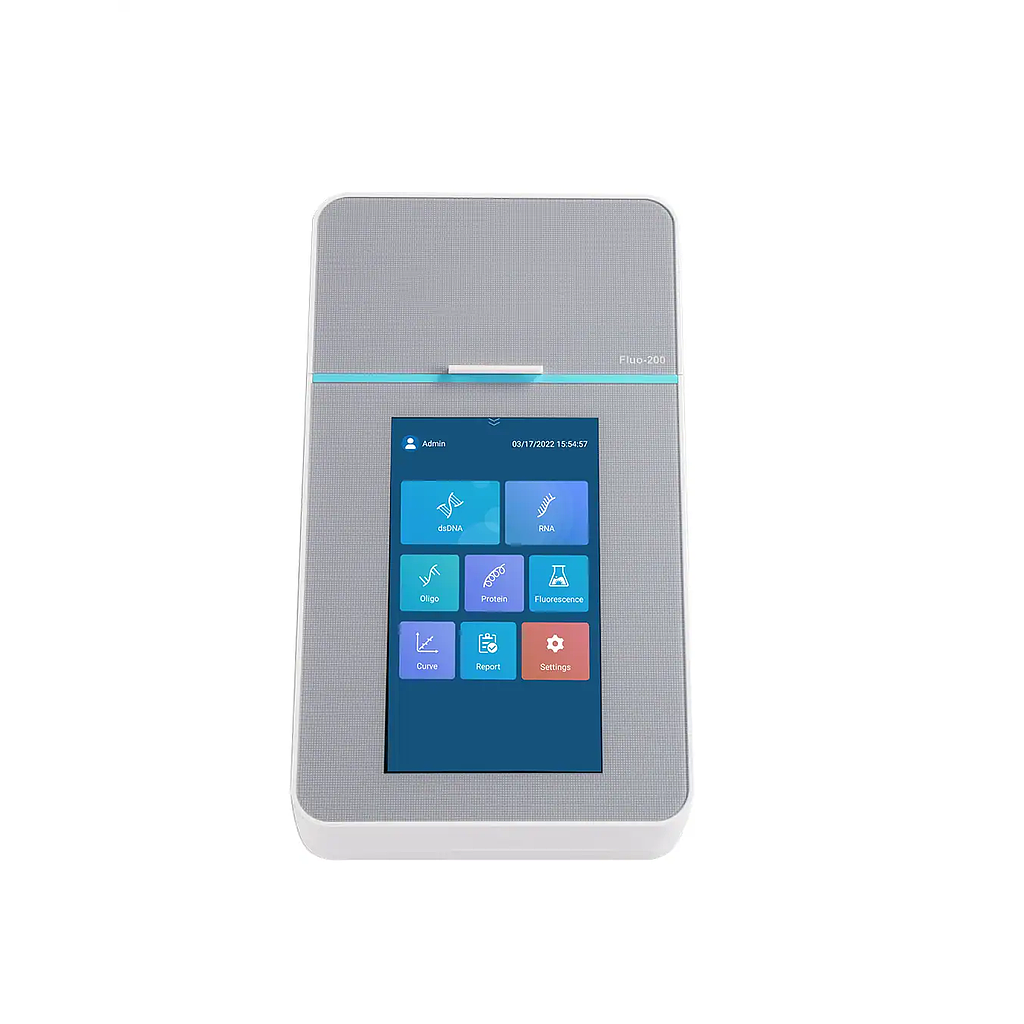

AELAB Fluo-200 Fluorometer

Light source: LED

Excitation filter:

Blue: 460±20 nm

Red: 625±20 nm

Emission filter:

Green: 525-570 nm (45 nm)

Red: 670-725 nm (55 nm)

Detector: Photodiode

Throughput: 1

Sample tube type: 0.5 mL PCR tube

Linear: r2>=20.995

Linear range: 5 orders of magnitude

Sensitivity (detection limit): <0.1 pg/uL (dsDNA HS)

Measurement time: ≤5 s/sample

Input power: 24 V2 A

Operating voltage: 100-240 V@50-60 Hz

External port:

USB (Type A) ×2, USB (Type B) ×1, LAN ×1

Display: 7-inch touch screen

Size (DxWxH): 286 mmx161 mmx61 mm

Weight: 1.5 kg

Storage capacity: 10000 programs
