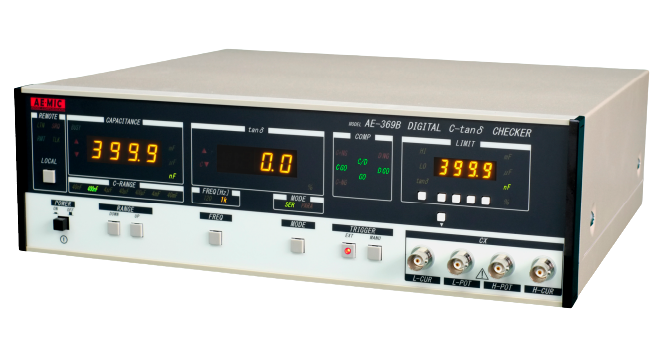

AE-MIC AE-369B Digital Capacitor Checker (0~39.99mF, 120Hz/1kHz)

Measuring range C：0~39.99mF/tanδ：0~199.9%

Measuring Method: 5 Terminal Measurement

Measurement Voltage: Below 400mV (r.m.s.)

Measuring Frequency: 120Hz/1kHz±0.1%, sine wave

Measurement Time:

【Remote start】about 8.2msec.(1kHz) / about 12.5msec.(120Hz)

【Free running】about 3 time/sec.

DC Bias: DC1.5V（built-in）and DC 0~25V(remote)

Use environment: Temp.：0℃~+50℃, Humidity：below 80%

Power supply AC85V~265V, 50~60Hz, about 30VA

Outer dimension: 333(W)×99(H)×300(D)mm (excluding protruding parts such as rubber legs, etc.)

Weight: Approx. 3.8kg
