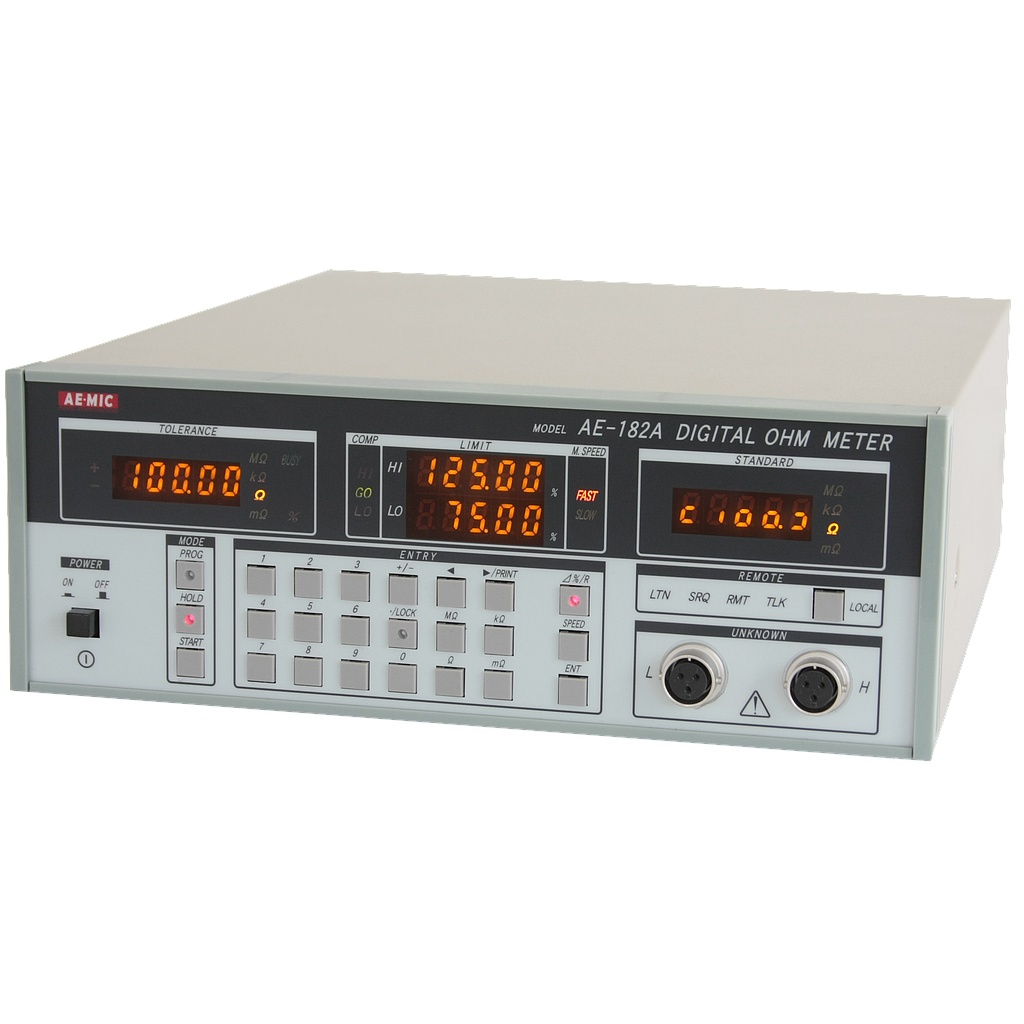

AE-MIC AE-182A Ultra-high Speed and High Accuracy DC Resistance Checker (5.00mΩ~109.00MΩ, <14V)

Measuring range: Standard value setting range; test current

100mΩ: 5.00mΩ~109.00mΩ; 100mA

1Ω: 0.0500Ω~1.0900Ω; 100mA

10Ω: 0.500Ω~10.900Ω; 30mA

100Ω: 5.00Ω~109.00Ω; 10mA

1kΩ: 0.0500kΩ~1.0900kΩ; 3mA

10kΩ: 0.500kΩ~10.900kΩ; 0.5mA

100kΩ: 5.00kΩ~109.00kΩ; 50μA

1MΩ: 0.0500MΩ~1.0900MΩ; 5μA

10MΩ: 0.500MΩ~10.900MΩ; 0.5μA

100MΩ: 5.00MΩ~109.00MΩ; 0.05μA

Test terminal open voltage: Below 14V

Measurement completion signal (EOC) pulse width: 1～250msec. or continuative

Measuring method: 2 or 4 terminal measurement capable of switching

Determination value setting range: %measurement:-99.99〜+25.00%, absolute value measurement: 00000～12500

Operation condition Temp.：0℃～+50℃、 Humidity：below 80%

Power supply: AC85V～265V、50～60Hz、about50VA

Outer dimension: 250(W)×92(H)×300(D)mm（excluding protruding parts such as rubber legs）

Weight: About 2.7kg

Option:

- External control/O、RS-232C、 Centronics standard

- GP-IB

- LAN

- Bar code unit（reader sold separately）

- Data transfer cable

- Short termination ( Zero ohm standard resistor)
